The ASUS Hyper M.2 x16 Gen5 Card is a high-performance PCIe expansion card designed to accommodate up to four NVMe M.2 SSDs of sizes 2242, 2260, 2280, and 22110. Supporting both PCIe 5.0 and PCIe 4.0, it utilizes a PCIe 5.0 x16 interface to deliver an aggregate bandwidth of up to 512 Gbps — perfect for ultra-fast storage solutions and RAID configurations.

Featuring a robust server-grade PCB and signal conditioning, this card ensures reliable high-speed data transfers and supports up to 14W power delivery per drive via a dedicated 6-pin PCIe power connector and two-phase power design.

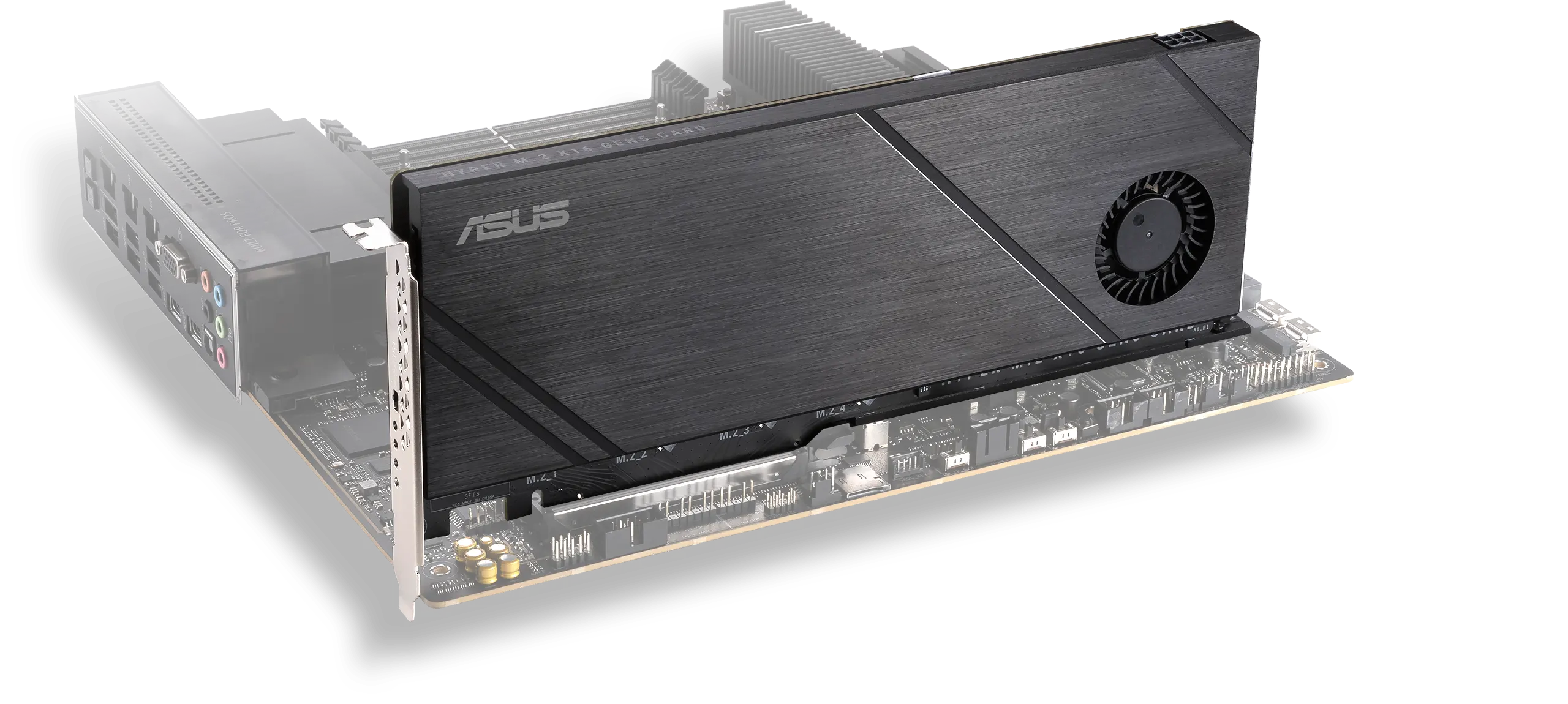

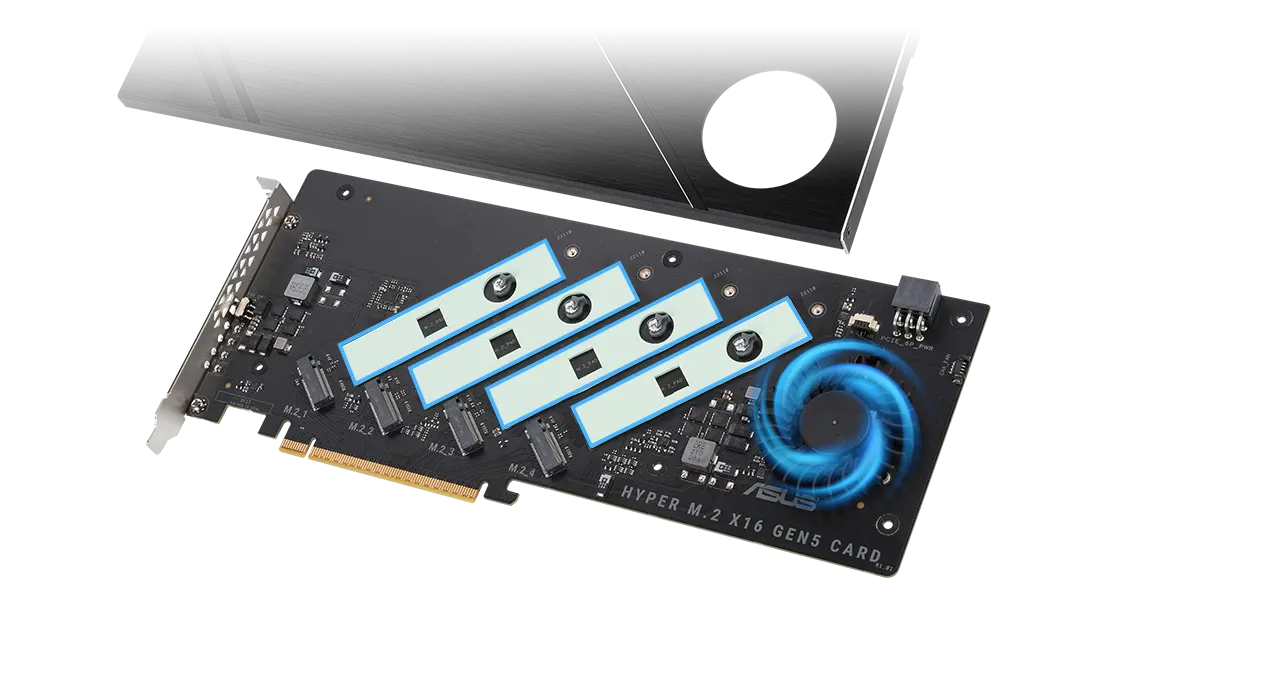

To maintain optimal performance, the card includes a full-cover heatsink and an integrated blower-style active fan with top and bottom thermal pads for effective heat dissipation. The fan supports motherboard chassis fan header connection for synchronized fan speed control (compatible with ASUS Fan Xpert).

Installation is simplified with four Q-Latch tool-less M.2 connectors and access/activity LEDs for each slot. The card supports RAID functions across the four M.2 slots when paired with compatible CPUs and motherboards that support PCIe bifurcation and RAID BIOS settings.

With dimensions of 29 x 12.2 x 1.5 cm, the ASUS Hyper M.2 x16 Gen5 Card is ideal for users seeking to expand NVMe storage capacity and leverage next-generation PCIe 5.0 speeds for workstations, servers, or enthusiast builds.

For detailed configuration, installation, and compatibility, consult the official ASUS support and product manual.
