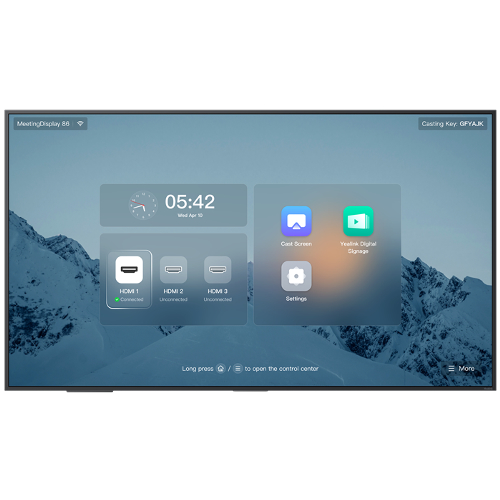

Yealink MeetingDisplay 86" 4K UHD IPS Anti-Glare Panel with Dual 12W Speakers, Wi-Fi 6, Bluetooth 5.1, HDMI x3 for Unified Microsoft Teams Rooms
★ 0.0 Rating (0 user feedback)

SKU: MD86

Availability: In Stock

Brand: Yealink

Category: Monitors

$2,999.00


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

Yealink MeetingDisplay 86-inch 4K UHD Professional Meeting Display

The Yealink MeetingDisplay MD86 is an 86-inch 4K UHD (3840×2160) IPS display designed specifically for seamless integration into modern conference rooms. This premium display features an anti-glare coating with 25% haze, ensuring clear visibility from wide 178° viewing angles even in bright environments. Ideal for medium to large meeting rooms, the display delivers vibrant imagery with a brightness of 500 cd/m² and a contrast ratio of 1200:1.

Powered by Android 13, it includes 4 GB RAM and 32 GB internal storage, enabling on-board applications and streamlined operation within Yealink’s Microsoft Teams Rooms (MTR) ecosystem. The integrated mounting system supports Yealink MeetingBar, UVC cameras, and MCore modules to simplify installation, enhance collaboration, and enable coordinated power and sleep/wake functions.

Key Connectivity & Features

  • Triple HDMI inputs supporting multiple AV sources
  • Dual USB-A and USB-B ports
  • Dual Gigabit LAN ports
  • RS232 port for advanced control integration
  • Wireless presentation sharing via AirPlay, Miracast, and Yealink Wireless Presentation Pod
  • Modern wireless standards including Wi-Fi 6 (802.11ax) and Bluetooth 5.1
  • Built-in stereo audio with dual 12W speakers for crystal clear sound

Management and Integration


Managed through Yealink Management Cloud Service (YMCS) and YDMP platforms, this display offers centralized control and monitoring, ideal for enterprise deployments. The display supports signage functionality and automatic input switching aligned with meeting schedules.

Power & Environmental

  • Maximum power consumption: 323W, Typical: 268W
  • Operating temperature range: 0 to 40°C
  • Relative humidity: 10% to 95%

What’s in the Box


  • Yealink MeetingDisplay 86"

  • Cable pack

  • Remote controller

  • MCore bracket for modular integration
Experience premium visual clarity and enterprise-grade meeting room management with the Yealink MeetingDisplay 86" 4K UHD IPS display—engineered to optimize collaboration and unify Microsoft Teams Rooms environments.

Physical

MountingIntegrated mounting for Yealink MeetingBar,UVC cameras,and MCore
Display Size86 inches
Panel TypeIPS with Anti-Glare coating (25% haze)
Panel TypeIPS with Anti-Glare coating (25% haze)

Environment

Humidity Range10% to 95%

Support

Warranty3 years manufacturer warranty

Environmental

Operating Temperature0 to 40 \u00b0C

General

Power Consumption (Max)323 W
Power Consumption (Typical)268 W
Wireless ConnectivityWi-Fi 6 (802.11ax),Bluetooth 5.1
Speakers2 \u00d7 12 W integrated stereo speakers
brightness_cd_per_m2500

Technical

Contrast Ratio1200:1
Viewing Angle178\u00b0 horizontal \/ vertical
Brightness500 cd\/m\u00b2
Viewing Angle178\u00b0 horizontal \/ vertical
Contrast Ratio1200
Resolution3840 x 2160 (4K UHD)

Performance

Refresh Rate60 Hz
refresh_rate_hz60

Software

Operating SystemAndroid 13

Internal

Memory4 GB RAM (on-board)
Storage32 GB internal storage

Connectivity

Connectivity PortsWi-Fi 6 (802.11ax); Bluetooth 5.1; 2\u00d7 LAN
Inputs3× HDMI,2× USB-A,1× USB-B,2× LAN,1× RS232

Compatibility

screen_size_inches86
