Ubiquiti UniFi Premium Patch Cable 0.3M White Ultra-Thin Braided Cat6A Cable Optimized for 10GbE Networking with Etherlighting™ RJ45
★ 0.0 Rating (0 user feedback)

SKU: UACC-Cable-Patch-EL-C6A-0.3M-W

Availability: In Stock

Brand: Ubiquiti

Category: Networking Accessories

$22.00


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

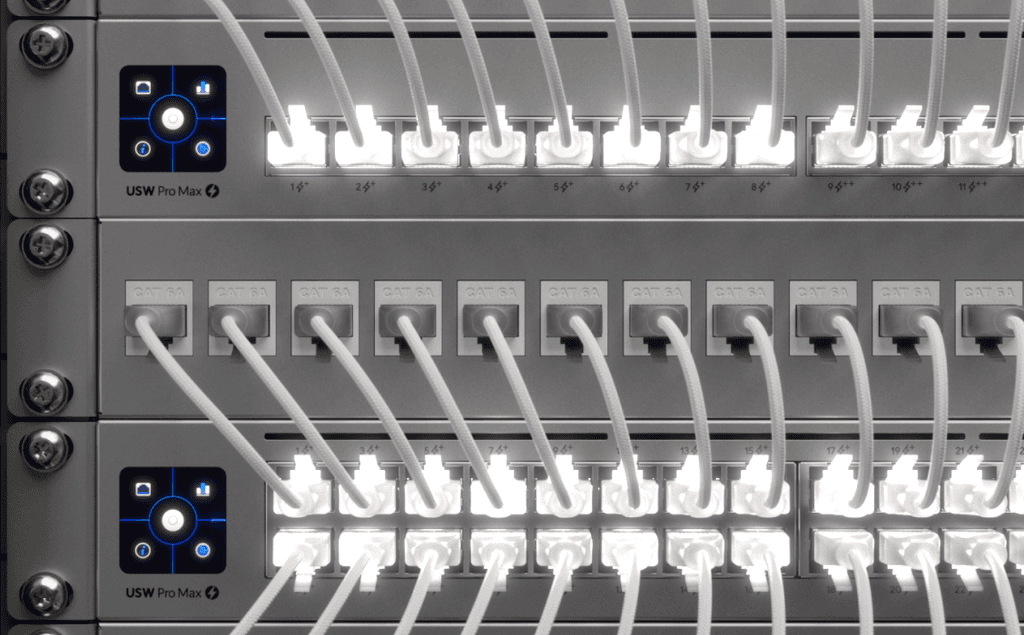

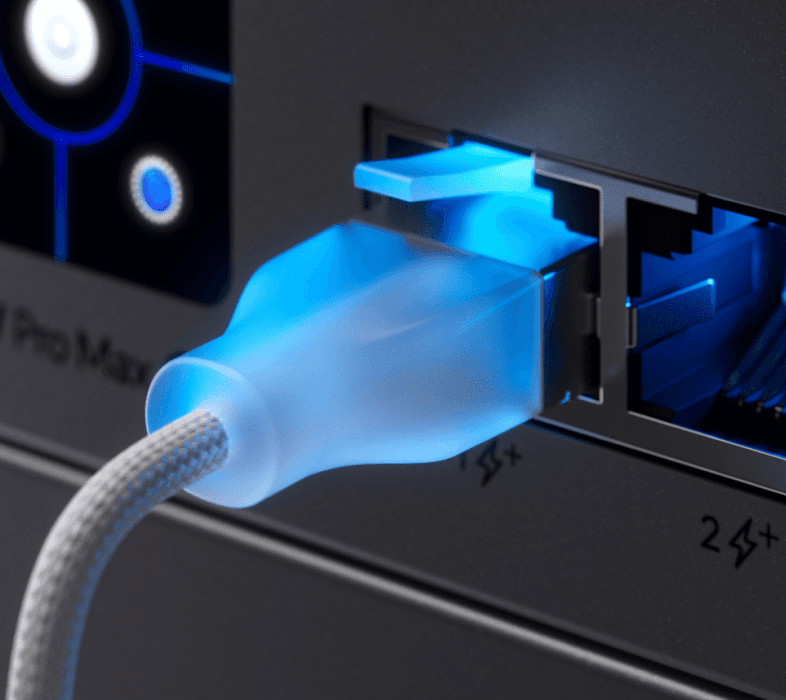

The Ubiquiti UniFi Premium Patch Cable (0.3m) is a high-performance, ultra-thin Cat6A patch cable engineered for 10 Gigabit Ethernet (10GbE) networks. Featuring a unique braided thermoplastic elastomer (TPE) jacket with a slim 3 mm diameter, this cable delivers exceptional aesthetics and superior flexibility for tight network setups. Its translucent booted RJ45 connectors enable Etherlighting™, providing a striking visual lighting effect through the shielded connector hoods.

Designed with stranded copper conductors (34 AWG) that ensure robust data integrity at speeds up to 10 Gbps. This cable supports PoE+++ standards, delivering up to 100W power over Ethernet, making it ideal for powering high-demand devices while maintaining excellent data transfer rates.

Key highlights include:

  • Ultra-thin, braided 3 mm diameter cable for space-saving and enhanced durability

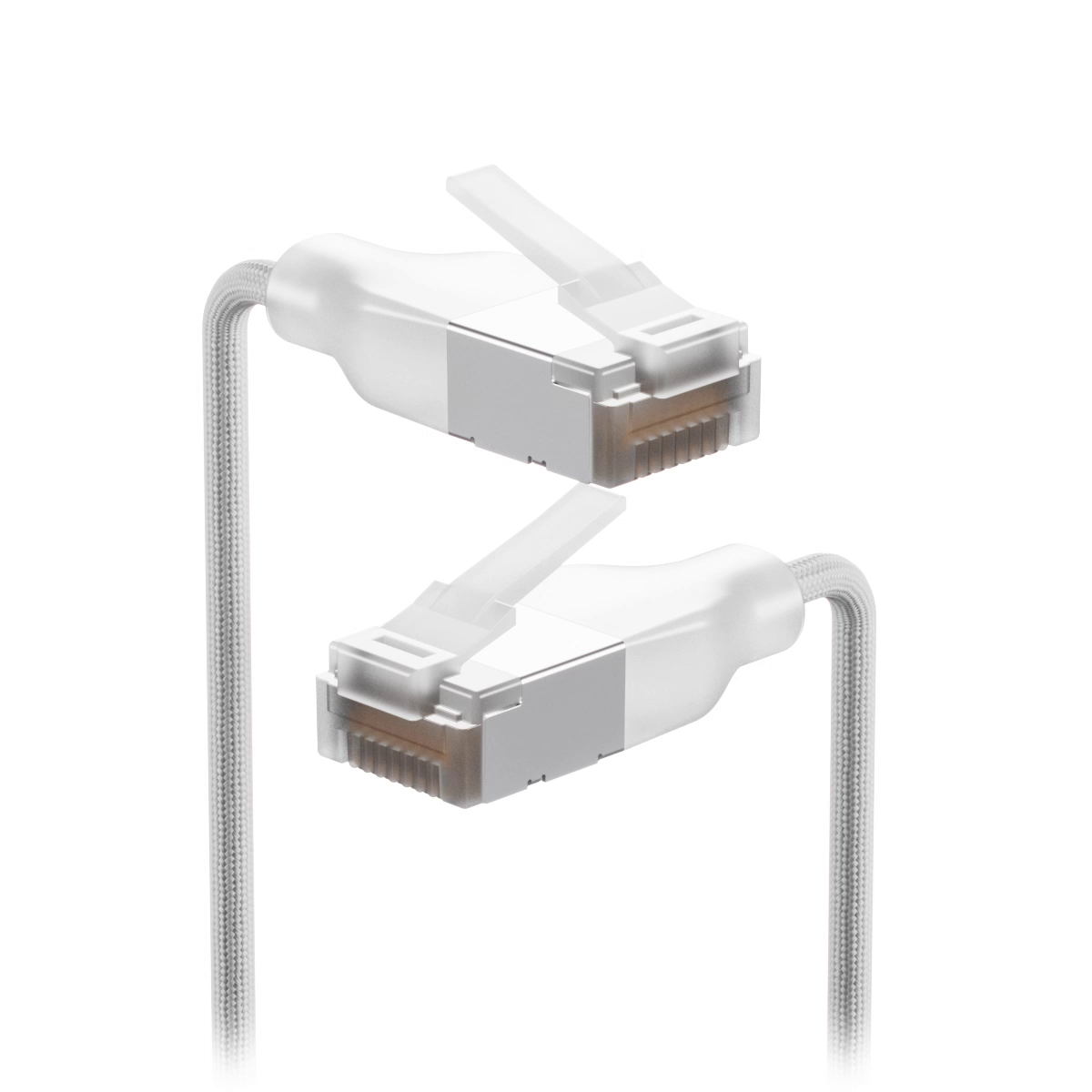

  • Shielded, translucent RJ45 connectors that support innovative Etherlighting™ effects

  • Meets industry standards TIA/EIA-568-B.2 and ISO/IEC 11801

  • Rated for indoor use with VW-1 flame rating and specified bend radius

  • Operating temperature range from -20°C to 60°C, storage up to 75°C
Available in multiple lengths for different deployment needs, making it a reliable choice for professional and home networking environments.

General

Shielding TypeUnshielded Twisted Pair (UTP)
Flame RatingVW-1 (UL1581)
Data RateUp to 10 Gbps
Jacket MaterialBraided Thermoplastic Elastomer (TPE)
storage_temperature_max_c75
operating_temperature_max_c60
operating_temperature_min_c-20

Identifiers

SKUUACC-Cable-Patch-EL-C6A-0.3M-W
Product TypePatch Cable
Model NumberUACC-Cable-Patch-EL-C6A-0.3M-W

Physical

Minimum Bend Radius24 mm
Storage TemperatureUp to 75\u00b0C
Outer Diameter3 mm
Connector TypeShielded Translucent RJ45 with Etherlighting\u2122
Length0.3 meters
ColorWhite
Cable TypeCat6A
Cable Length (m)0.3
dimensions_mm_l300
cable_jacket_diameter_mm3
cable_jacket_materialBraided Thermoplastic Elastomer (TPE)
cable_length_with_cap_m0.3
shieldingUnshielded Twisted Pair (UTP)

Environmental

Operating Temperature-20\u00b0C to 60\u00b0C

Technical

Standards ComplianceTIA/EIA-568-B.2,ISO/IEC 11801
Power over EthernetPoE+++ up to 100W
LAN Speed Support10G

Electrical

Conductor MaterialStranded Copper (34 AWG)
poe_power_output_w100
Powering TypePoE+++ (4-pair)
PoE SupportPoE+++ up to 100W

Meta

environmental_operating_temperature_unitCelsius

Identification

ModelUbiquiti UniFi Premium Patch Cable
