SKU: USW-Ultra-60W
Availability: In Stock
Brand: Ubiquiti
Category: Switches
100% Guarantee Safe Checkout

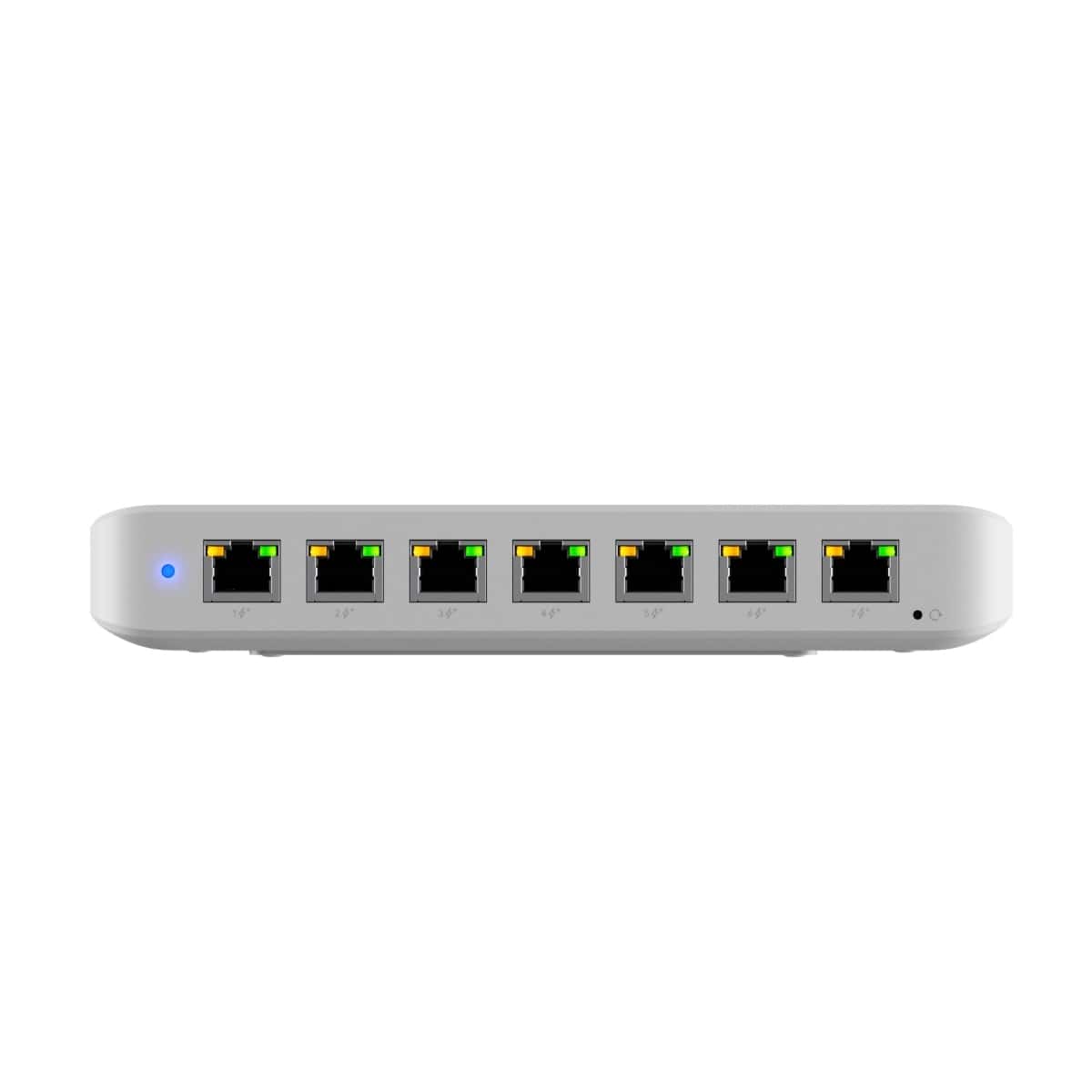

The Ubiquiti Ultra 60W (USW-Ultra-60W) is a compact and versatile 8-port Layer 2 Gigabit Ethernet switch designed for efficient network deployments. Featuring 7 GbE PoE+ output ports and a single GbE port capable of PoE++ input, this switch supports flexible power input methods including the included 60W AC/DC power adapter or PoE++ input. Its compact polycarbonate enclosure measures just 203 x 76 x 33 mm, making it ideal for desktop, wall, or magnetic mounting configurations.
Powered for performance, the Ultra 60W delivers a switching capacity of 16 Gbps with a non-blocking throughput of 8 Gbps and a forwarding rate of 12 Mpps, supporting advanced Layer 2 features such as STP & RSTP, storm control, egress rate limiting, port isolation, and jumbo frames. Manage the switch conveniently via in-band Ethernet with the UniFi Network application (version 8.0.7 or newer).
Power and PoE availability:
| Mounting Options | Desktop,Wall,Magnetic |
| Enclosure Material | Polycarbonate |
| Dimensions (WxDxH) | 203 x 76 x 33 mm |
| Weight | 320 g (device),45 g (mount),330 g (adapter) |
| Rack Mount Compatibility | Desktop,Wall,Magnetic mounting options |
| Material | Polycarbonate |
| Dimensions (mm) | 203 x 76 x 33 |
| Form Factor | Compact,desktop,wall,magnetic mount |
| weight_kg | 0.32 |
| Ports | 8 total (7 GbE PoE+ output,1 GbE with PoE++ input) |
| Layer 2 Features | STP & RSTP,egress rate limiting,flow control,storm control,multicast & broadcast rate limiting,port isolation,port mirroring,jumbo frames,loop protection |
| Throughput | 8 Gbps (non-blocking) |
| Management | In-band Ethernet via UniFi Network app (v8.0.7+) |
| Forwarding Rate | 12 Mpps |
| non_blocking_throughput_gbps | 8 |
| forwarding_rate_mpps | 12 |
| Switching Capacity | 16 Gbps |
| switching_capacity_gbps | 16 |
| PoE Power Output | Up to 52W with AC adapter,42W PoE++ input |
| Certifications | CE,FCC,IC,Anatel,NDAA compliant |
| SKU | USW-Ultra-60W |
| ports_10g | 0 |
| Layer Support | Layer 2 features including STP & RSTP,egress rate limiting,flow control,storm control,multicast & broadcast rate limiting,port isolation,port mirroring,jumbo frames,loop protection |
| PoE Standard | PoE+,PoE++ |
| total_poe_power_budget_w | 52 |
| Power Input | AC adapter input with PoE++ input port |
| max_power_consumption_w | 52 |
