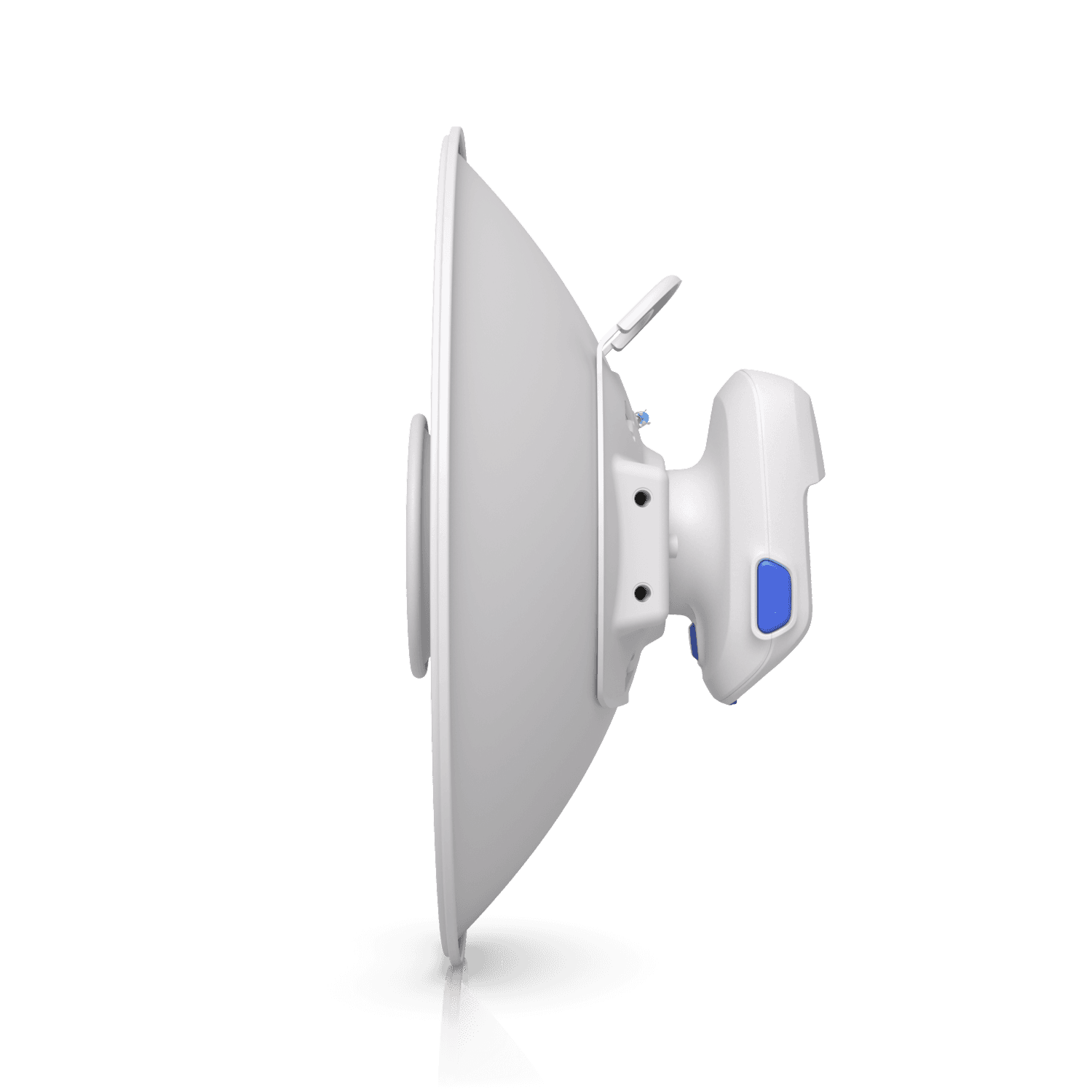

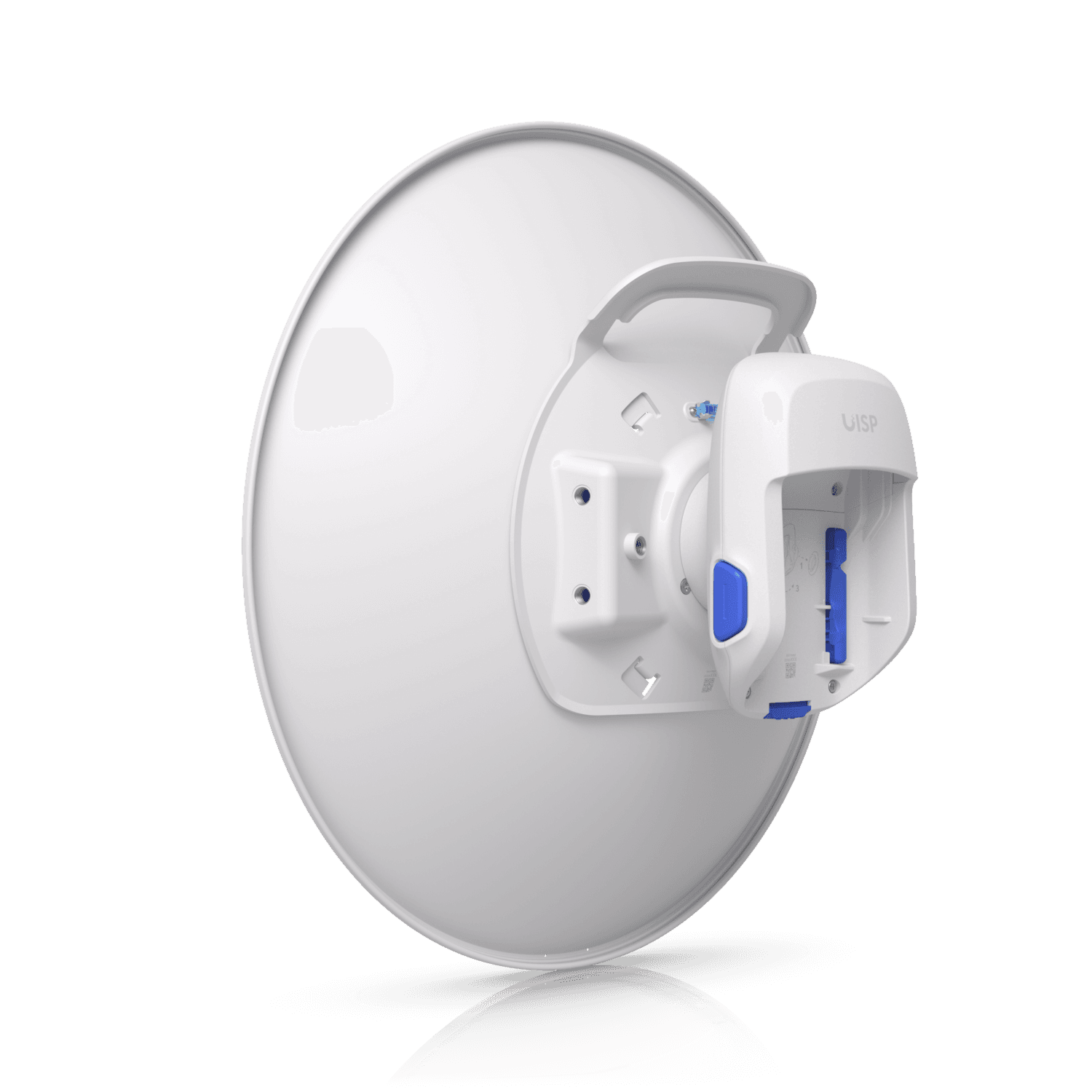

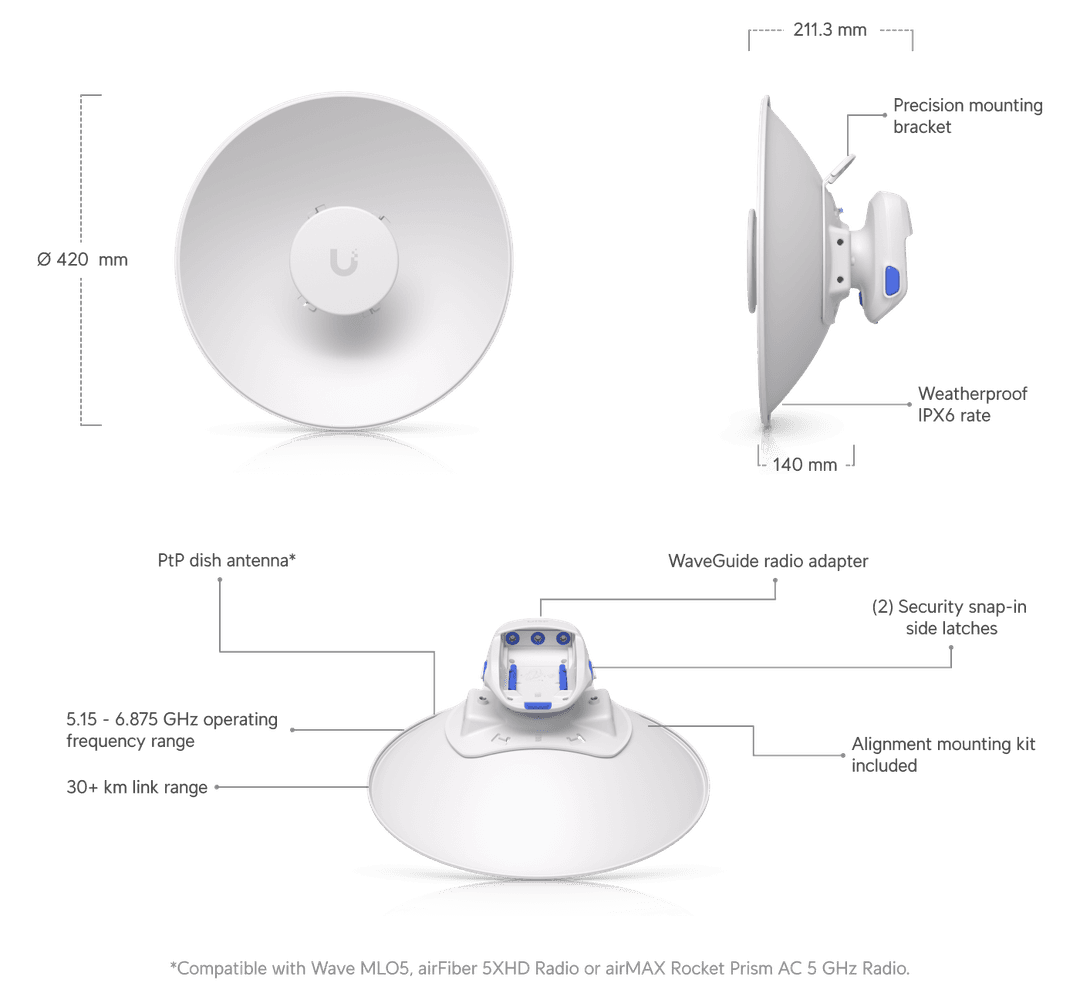

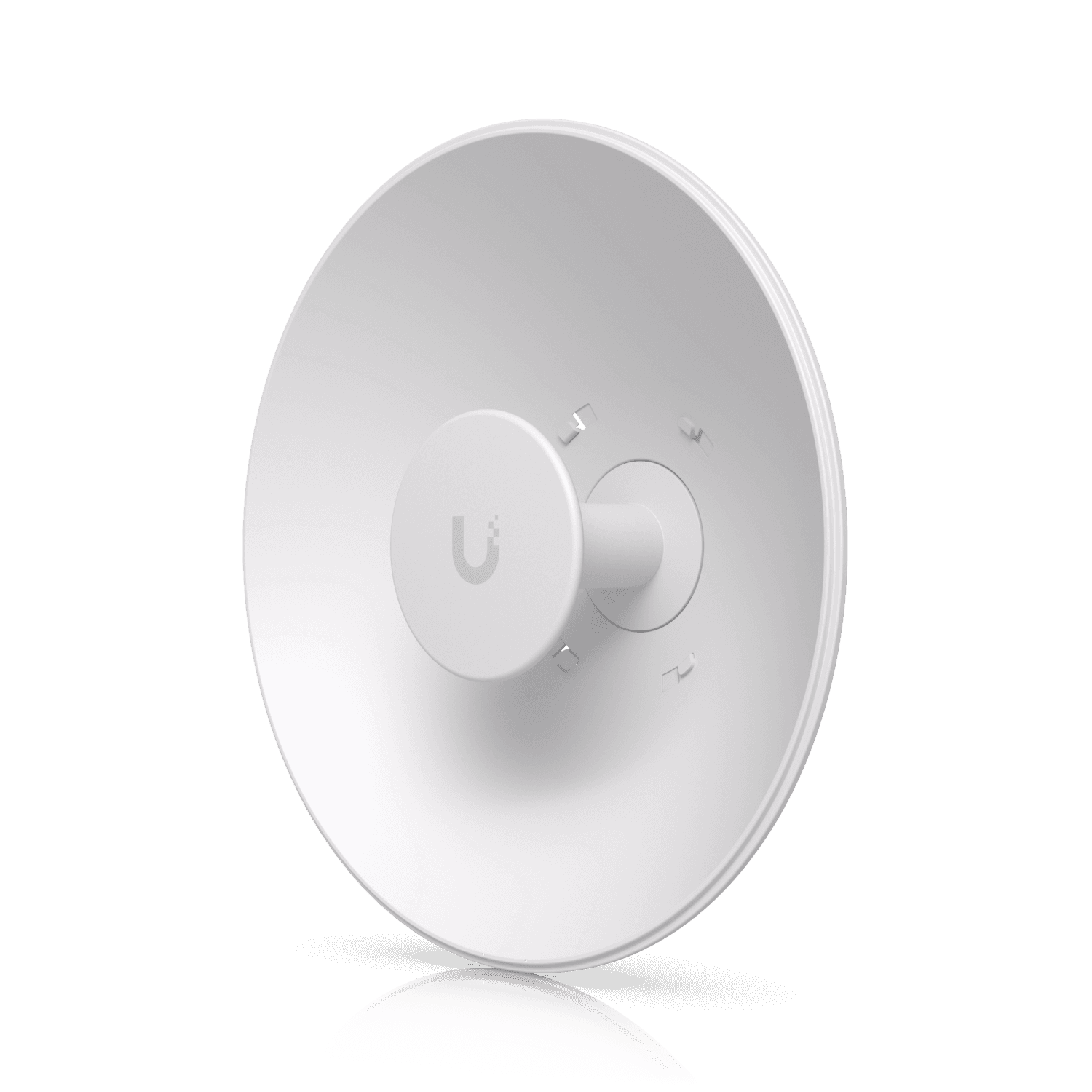

The Ubiquiti UISP Dish Mini is a high-performance, compact point-to-point (PtP) dish antenna engineered for 5.15–6.875 GHz frequency bands. Featuring a powerful 26 dBi gain, this dish enables robust wireless connections with direct radio mounting, utilizing secure snap-in latches to simplify installation. Its durable construction combines powder-coated galvanized steel with UV-stabilized polycarbonate, making the antenna weatherproof and rated to IPX6 standards for outdoor resilience.

Designed for easy deployment, it includes a built-in alignment mounting kit with ±20° elevation adjustment and is compatible with pole mounts ranging from 32 to 76 mm in diameter. The antenna supports dual-linear polarization and maintains excellent cross-polarization isolation (~15 dB) with a maximum VSWR of 2:1, ensuring optimal signal quality.

Additional features:

• Mechanical specifications: Dish weight 1.95 kg, mount 1.0 kg, waveguide 0.45 kg


• Beamwidth: 3 dB azimuth and elevation between 5.8° and 9°, 6 dB beamwidth from 7.6° to 12.5°


• Wind survivability up to 200 km/h with 348 N wind loading


• NDAA compliant for secure deployments
