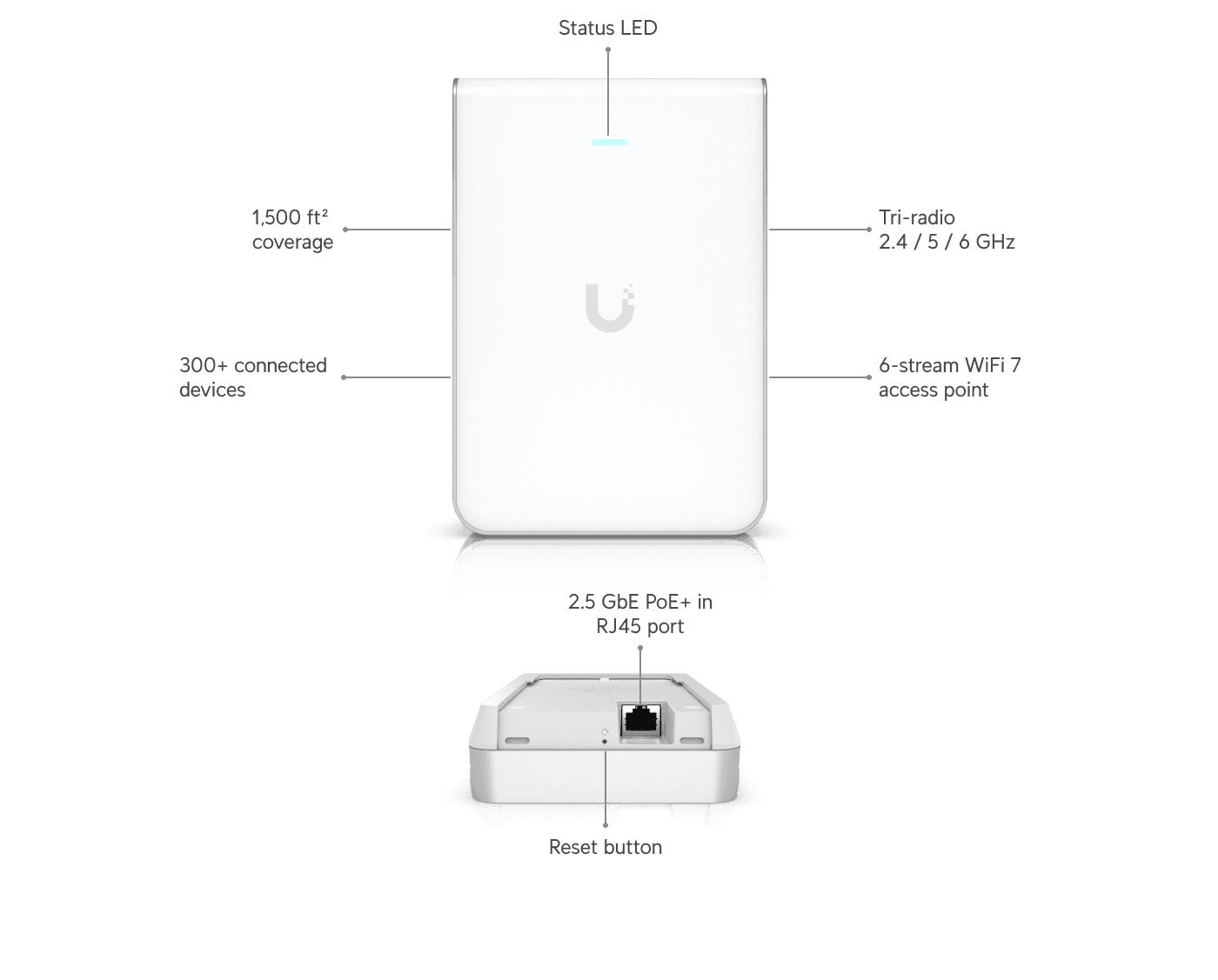

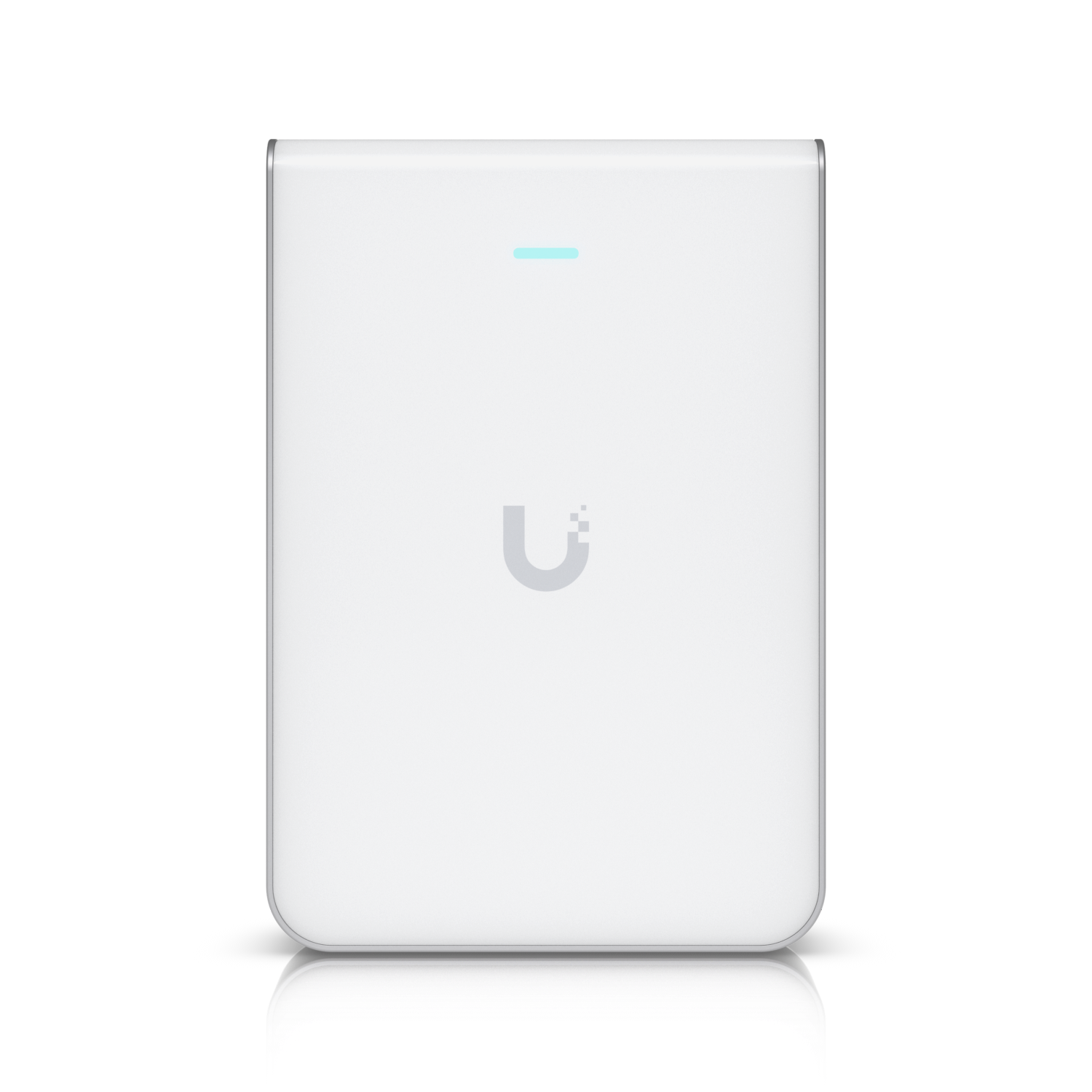

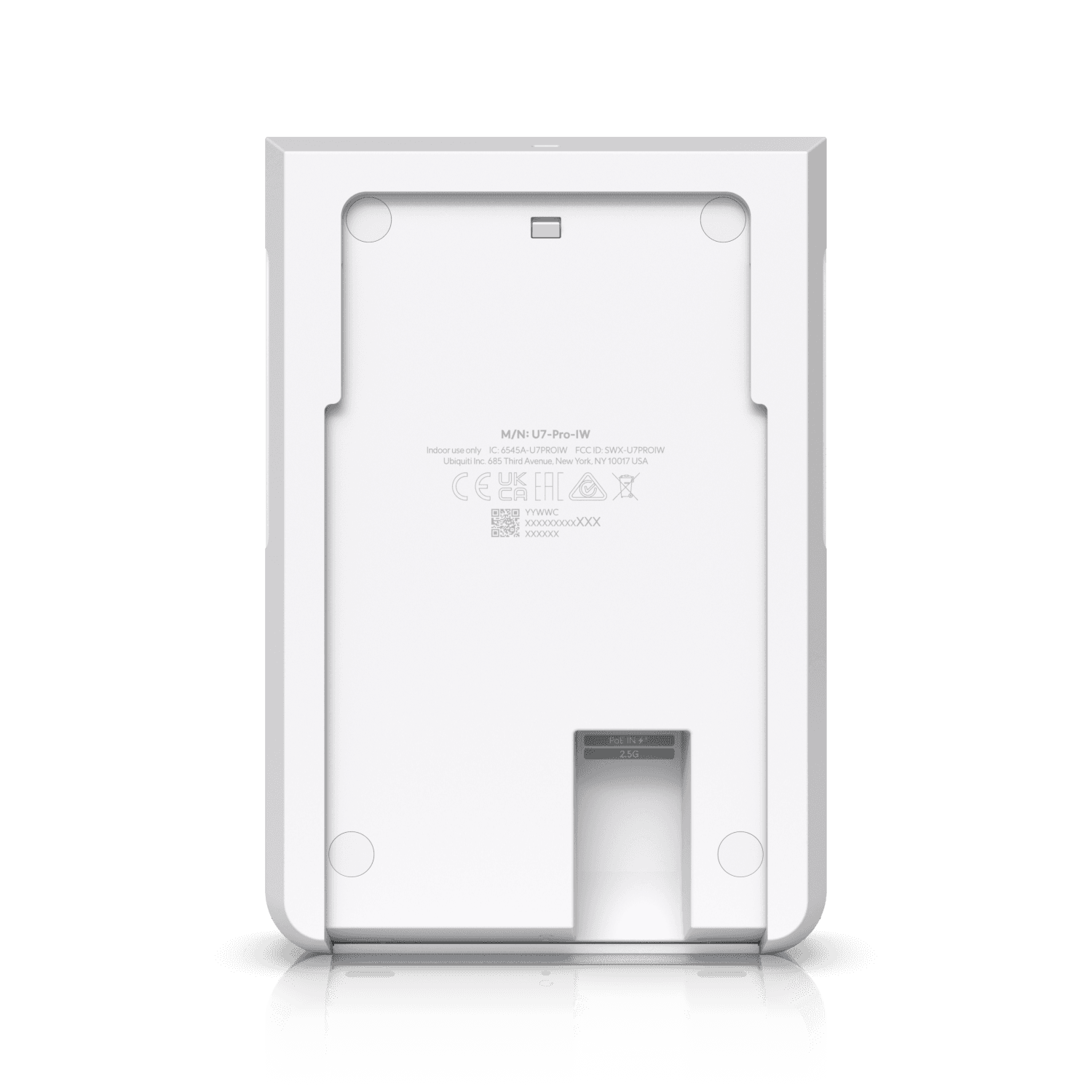

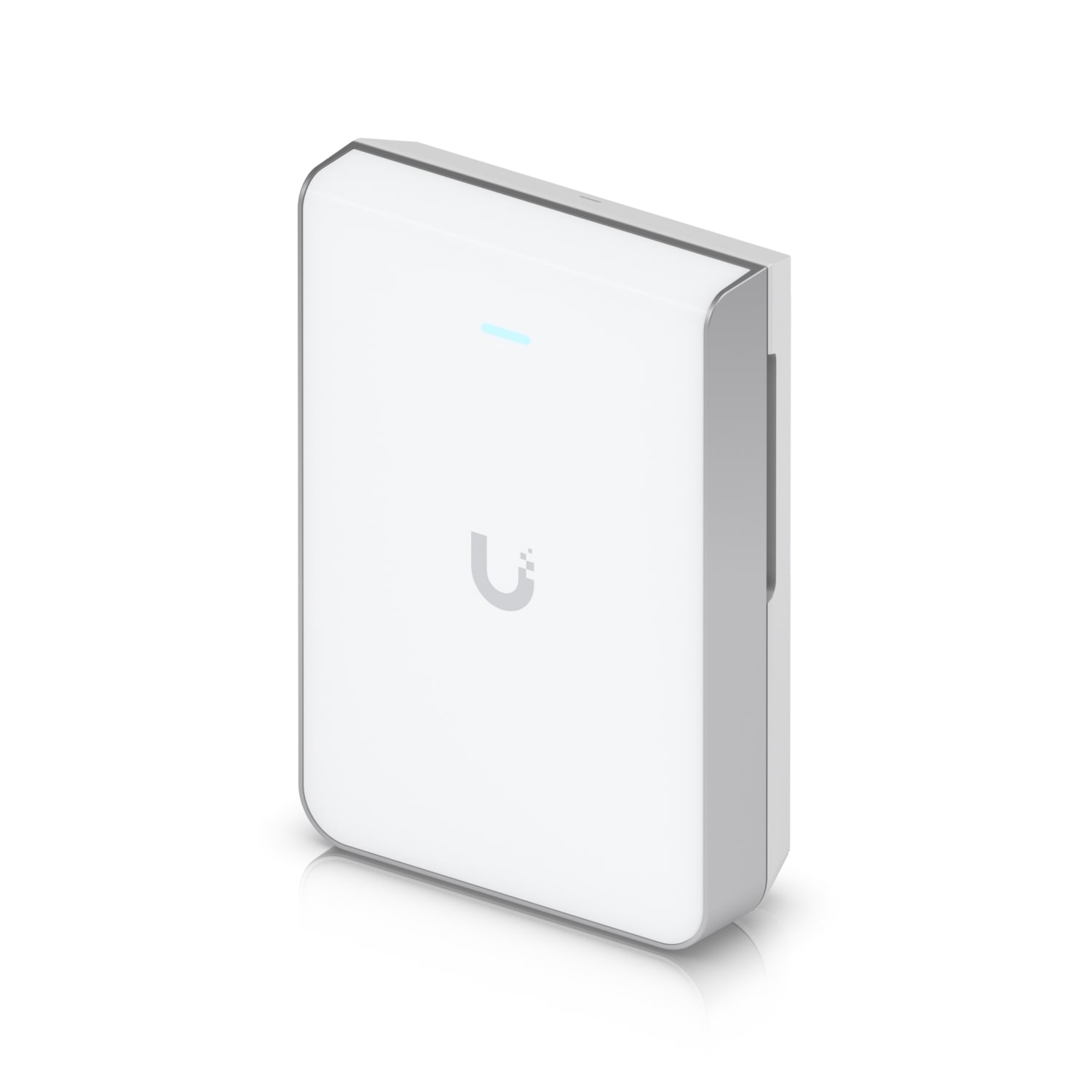

The Ubiquiti U7 Pro Wall is a cutting-edge wall-mounted WiFi 7 access point designed for high-density environments such as homes and property developments. Featuring 6 spatial streams and tri-band support including the latest 6 GHz band, it delivers ultra-fast wireless performance with maximum data rates of up to 5.8 Gbps (6 GHz), 4.3 Gbps (5 GHz), and 688 Mbps (2.4 GHz).

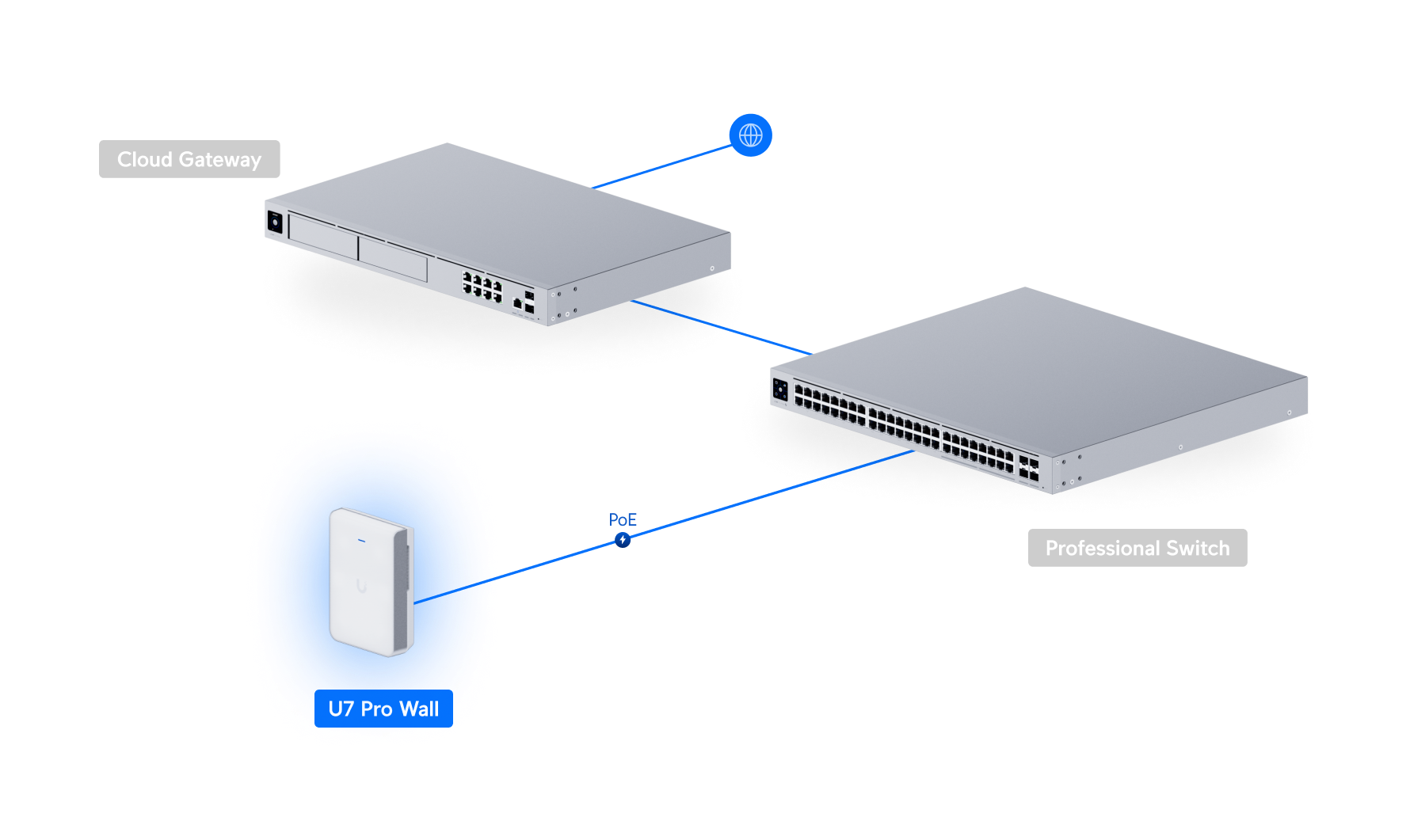

Powered via PoE+ (44–57V DC) and equipped with a 2.5 GbE uplink, the U7 Pro Wall supports over 300 concurrent devices while covering an area of approximately 140 m² (1,500 ft²). Its compact, durable enclosure allows for seamless wall installation and versatile deployment options with optional flush mount and table stand accessories.
Advanced UniFi software features include wireless meshing, band steering, multi-user MU-MIMO across all bands, 802.11v/r/k radio management, captive portal, RADIUS over TLS security, private pre-shared keys (PPSK), per-user rate limiting, client isolation, and WiFi schedules, making it ideal for enterprise-class network environments.
Certifications and compliance: CE, FCC, IC, Anatel certified and NDAA compliant. The device operates reliably within an ambient temperature range of -30°C to 60°C and supports up to 95% non-condensing humidity.
Visit the [Ubiquiti official product page](https://techspecs.ui.com/unifi/wifi/u7-pro-wall?subcategory=wifi-wall) for detailed technical specifications and software management options.
| Software Features | Wireless meshing,band steering,802.11v/r/k,PPSK,captive portal,RADIUS over TLS,client isolation,WiFi schedules |
| Humidity | 5 to 95% non-condensing |
| NDAA Compliance | Yes |
| Coverage Area | 140 m² (1,500 ft²) |
| Max Clients Supported | 300+ |
| Transmit Power | 22 dBm (2.4 GHz),26 dBm (5 GHz),23 dBm (6 GHz) |

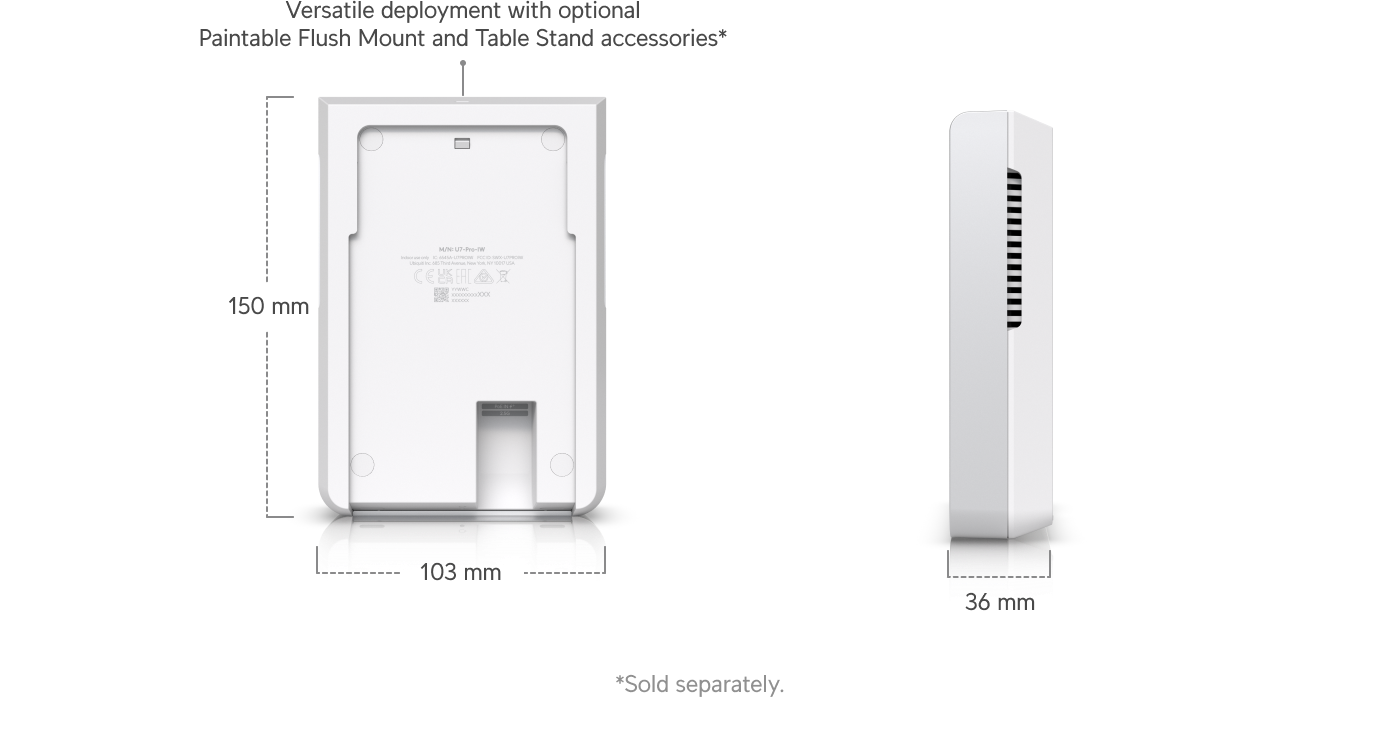

| Dimensions (WxHxD) | 150 x 103 x 36 mm |
| Uplink Interface | 2.5 GbE RJ45 |
| Power Method | PoE+ (44\u201357V DC) |
| Max Data Rate 2.4 GHz | 688 Mbps |
| Max Data Rate 5 GHz | 4.3 Gbps |
| Max Data Rate 6 GHz | 5.8 Gbps |
| Spatial Streams | 6 |
| antenna_gain_db | 4 dBi (2.4 GHz),5 dBi (5 GHz),6 dBi (6 GHz) |
| Frequency Band | 2.4 GHz,5 GHz,6 GHz |
| Enclosure Material | Polycarbonate with aluminum mount |
| Weight | 580 g |
| Antenna Gain | 4 dBi (2.4 GHz),5 dBi (5 GHz),6 dBi (6 GHz) |
| Dimensions (mm) | 150,103,36 |
| weight_grams | 580 |
| Operating Temperature | -30 to 60\u00b0C |
| Max Power Consumption | 22 W |
| Power Consumption (W) | 22 |
| Power Requirements | PoE+ (44-57 V DC) |
| Frequency Bands | 2.4 GHz \/ 5 GHz \/ 6 GHz |
| Wi-Fi Standard | 802.11a\/b\/g\/n\/ac\/ax\/be (WiFi 7) |
| Wireless Standards | 802.11a,802.11b,802.11g,802.11n,802.11ac,802.11ax,802.11be |
| Model Number | U7-Pro-Wall |
| Model Number | U7-Pro-Wall |
| Certifications | CE,FCC,IC,Anatel |
| operating_temperature_c | -30,60 |
| Ethernet Ports | 1 x 2.5 GbE RJ45 (uplink) |
