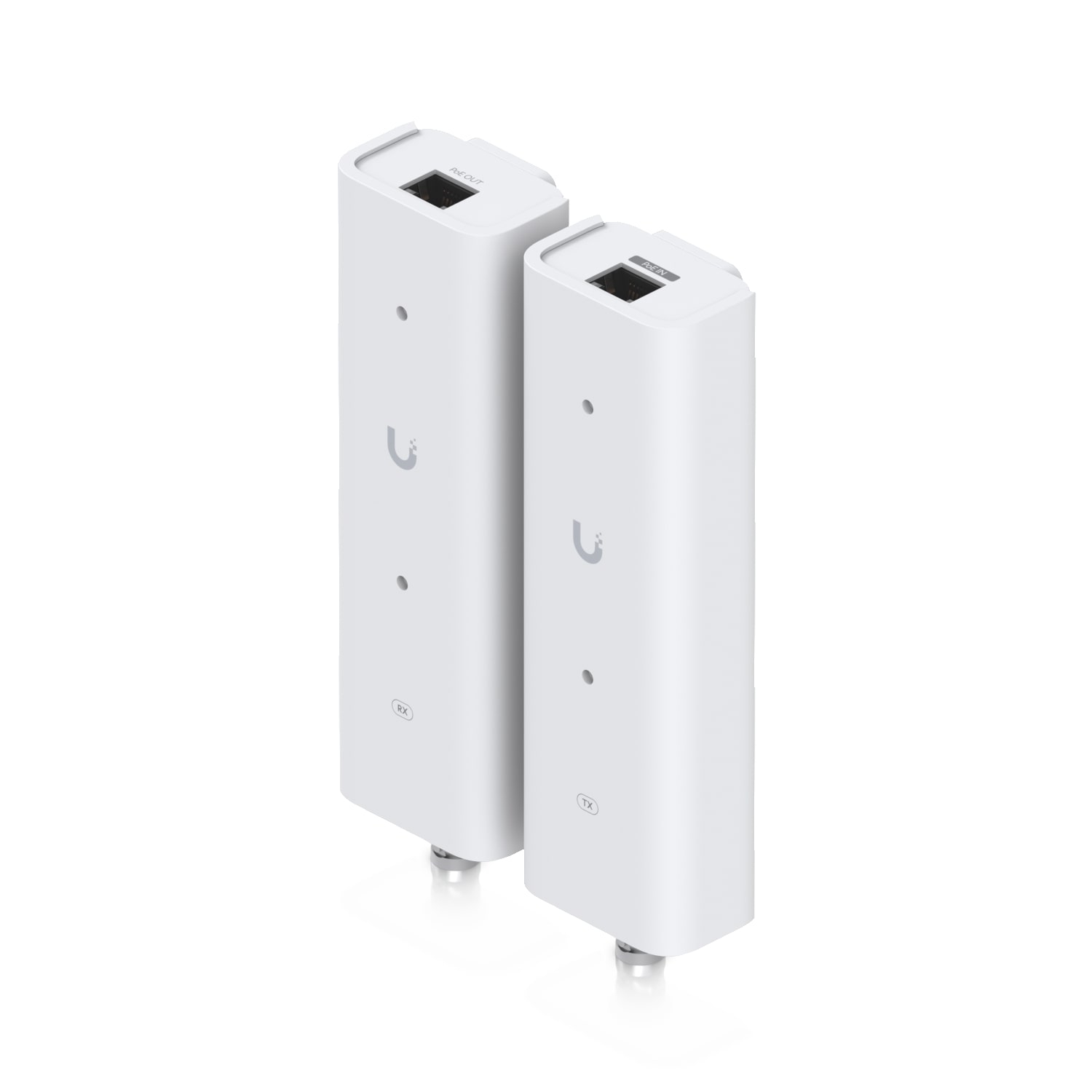

Ubiquiti PoE Over 2-Wire Retrofit Extender Kit (UACC-Retrofit-PoE-2Wire) is a specialized extender pair designed to deliver Power over Ethernet (PoE) and network connectivity over existing two-wire twisted pair or RG-6 coaxial cabling. Ideal for retrofit scenarios, this kit eliminates the need for complete rewiring by leveraging HomePlug AV technology to extend Ethernet and PoE simultaneously.
Key Features:
- Complete Kit: Includes a transmitter (PoE++ input, 2-wire output, and 2-wire to BNC adapter) and a receiver (PoE/PoE+ output, 2-wire input, 2-wire to BNC adapter).
- Power and Data Support: Accepts PoE++ input (50 V DC, 1.2 A) at the transmitter and provides PoE+ output (48 V DC, 0.6 A) at the receiver.
- Versatile Cable Compatibility: Extends PoE and data over existing twisted-pair or coaxial cables with recommended performance tables for cable length, bandwidth, and power delivery.
- Network Interfaces: Features 10/100 Mbps Ethernet and HomePlug AV for in-cable data transmission.
- Robust Design: Compact polycarbonate enclosures with ESD/EMP protection (air ±8 kV, contact ±4 kV) ensure durability.
- Operating Environment: Supports temperatures from -10 to 40 °C and relative humidity of 5–90% noncondensing.
- Certifications: Complies with CE, FCC, IC, and UL 62368-1 standards.
This extender kit provides an efficient and cost-effective solution to extend PoE-enabled devices such as access control systems or cameras where rewiring is impractical. Performance varies by cable type and length, with detailed data and power delivery specifications available from the manufacturer.
