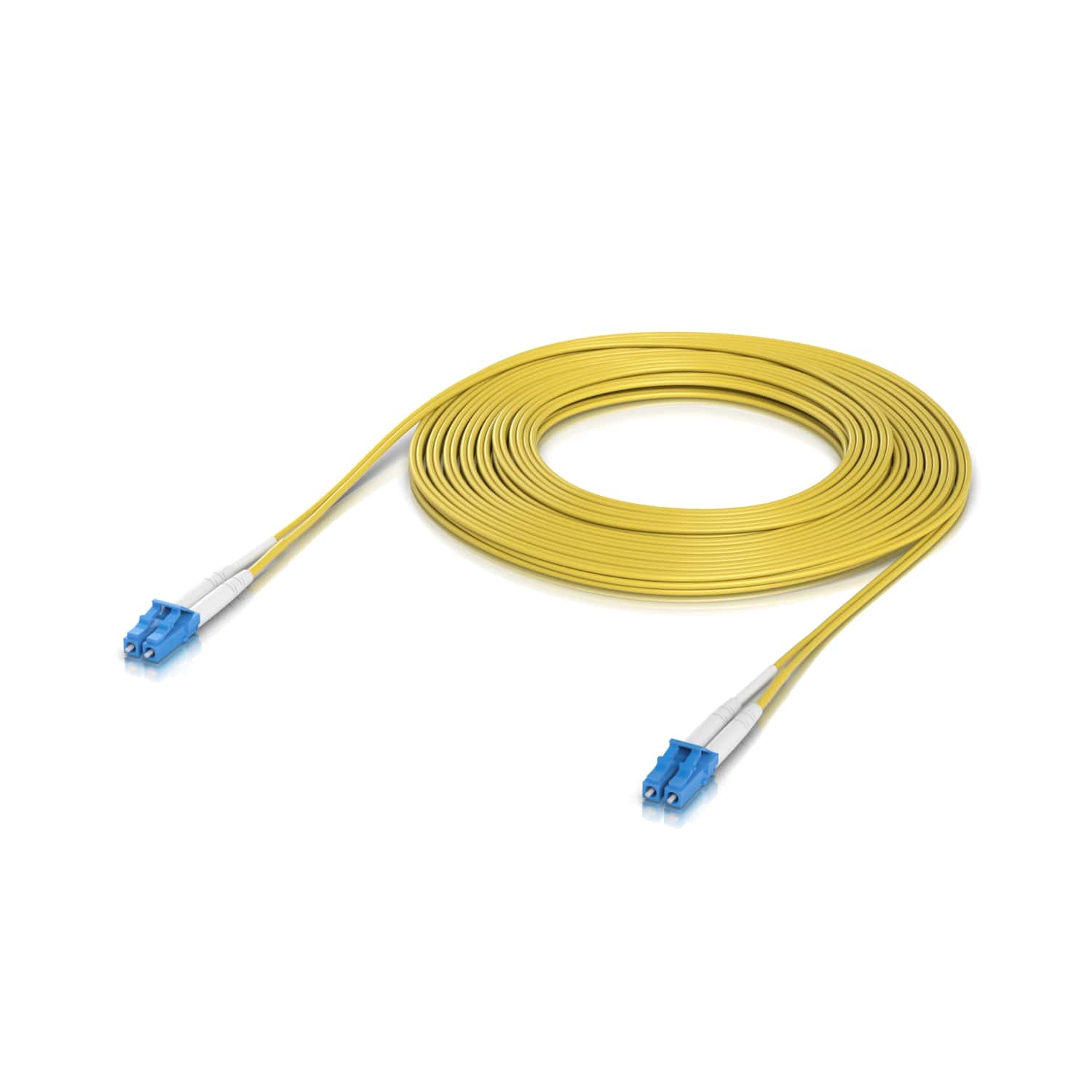

Ubiquiti OS2 Duplex LC UPC Fiber Patch Cable (10M) is a premium single-mode (OS2) fiber optic patch cable designed for high-performance indoor network applications supporting speeds up to 100G. Featuring duplex LC connectors with Ultra Physical Contact (UPC) polish on both ends, this cable ensures minimal signal loss and exceptional signal integrity.

Crafted with a low smoke zero halogen (LSZH) yellow jacket, it has a compact 2.0 mm outer diameter, making it lightweight and easy to manage in dense cabling environments. It supports the standard wavelengths of 1310 nm and 1550 nm for versatile single-mode fiber applications.

Key performance specifications include an insertion loss ≤ 0.3 dB, return loss ≥ 50 dB, and excellent repeatability (≤ 0.1 dB) and durability (≤ 0.2 dB over 1,000 mating cycles). It operates reliably within a broad ambient temperature range from -40°C to 75°C.

Ideal for data centers, telecom networks, and enterprise LANs, this cable delivers a robust, long-distance optical connection with superior performance and reliability.

• OS2 Single-Mode Fiber
• Duplex LC UPC Connectors (LC-LC)
• Length: 10 meters
• Jacket: LSZH, yellow, 2.0 mm diameter
• Wavelength: 1310/1550 nm
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB
• Repeatability: ≤ 0.1 dB
• Durability: ≤ 0.2 dB over 1,000 mating cycles
• Operating Temperature: -40°C to 75°C
