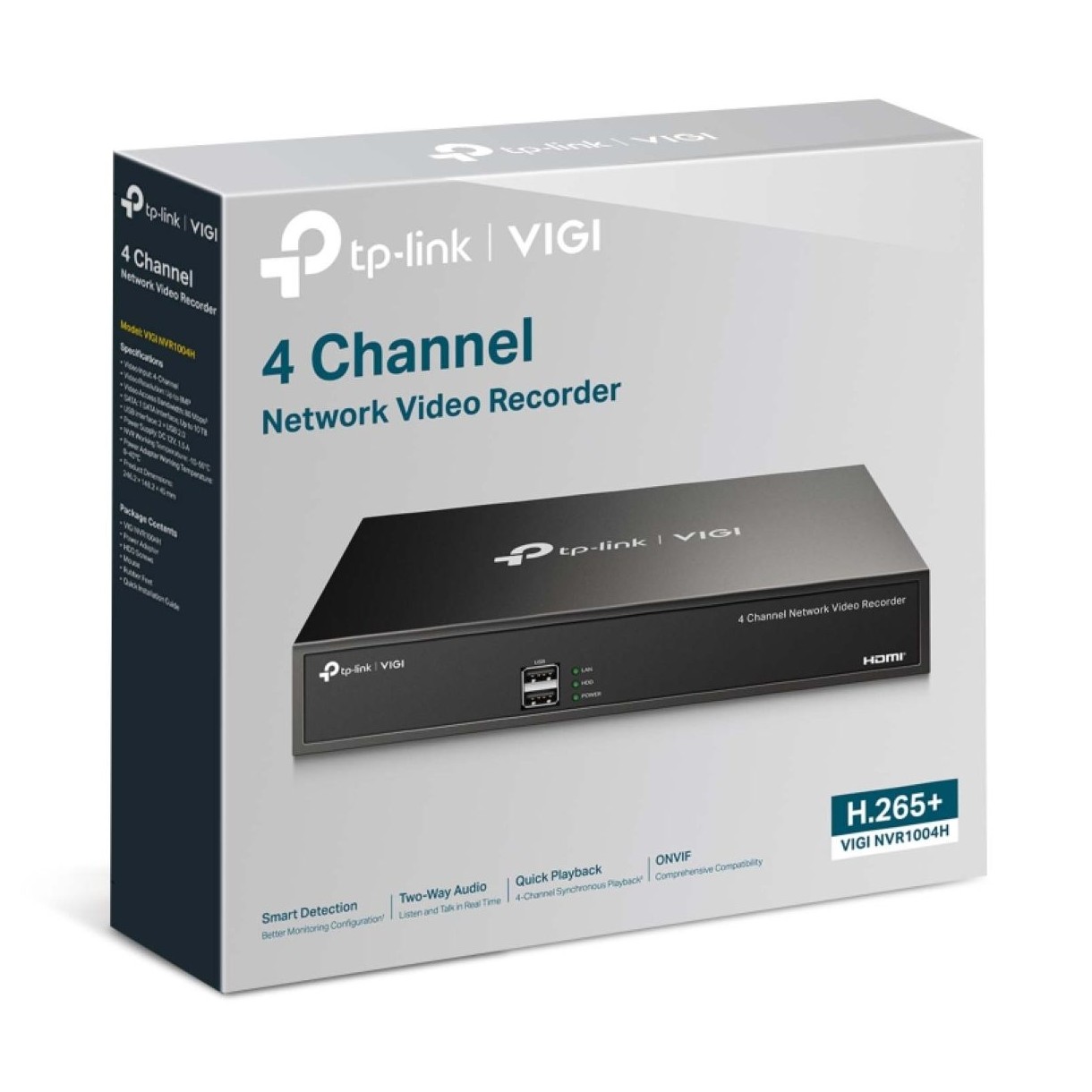

The TP-Link VIGI NVR1004H is a robust 4-channel Network Video Recorder designed for small businesses and home surveillance systems. Featuring 4-channel live view and supporting 4K HDMI video output, this NVR ensures crystal-clear local display of connected IP cameras. It employs advanced H.265+/H.265/H.264+/H.264 video compression technologies to significantly reduce storage requirements and network bandwidth usage without compromising image quality.

With decoding capabilities supporting up to 2 channels at 8MP or 4 channels at 4MP (depending on frame rate and settings), it offers flexible recording options tailored to varying security needs. The NVR supports 4-channel synchronous playback with multiple recording modes — manual, scheduled, and motion-detection — for comprehensive video management. Playback features include instant playback, event playback, tag playback, and clip export.

Networking features include an 80 Mbps incoming and 60 Mbps outgoing bandwidth to handle multiple camera streams efficiently. Network protocols such as UPnP, NTP, and support for ONVIF and CGI enhance compatibility with third-party cameras. The device provides both HDMI and VGA simultaneous video outputs supporting up to 3840 × 2160 @ 30Hz resolution.

Additional connectivity options include one RJ-45 10/100 Mbps Ethernet port, two USB 2.0 ports, one audio in, and one audio out port. Storage is enabled through a single SATA interface supporting HDDs up to 10 TB (HDD not included). It also features alarm capabilities with motion, tamper, line crossing, intrusion, vehicle/human detection, and more, when paired with compatible cameras.

Built to last, the unit operates reliably in temperatures ranging from -10°C to 55°C, with a compact form factor measuring 246.2 × 148.2 × 45 mm and a weight of approximately 0.59 kg. Power consumption is efficient at a maximum of 4.25 W (without disk).

Note: Number of simultaneously playable channels may be fewer if total resolution exceeds 16MP. Model availability may vary by region.
