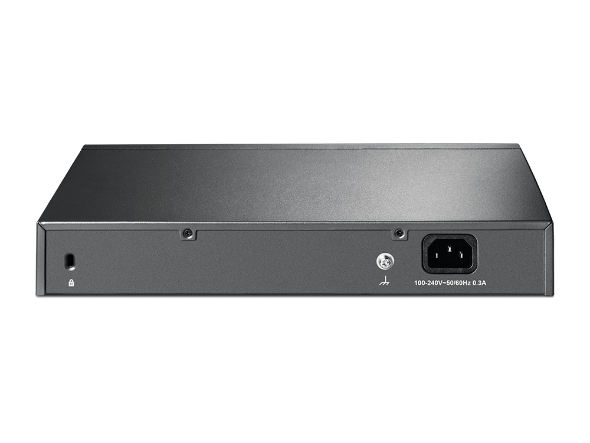

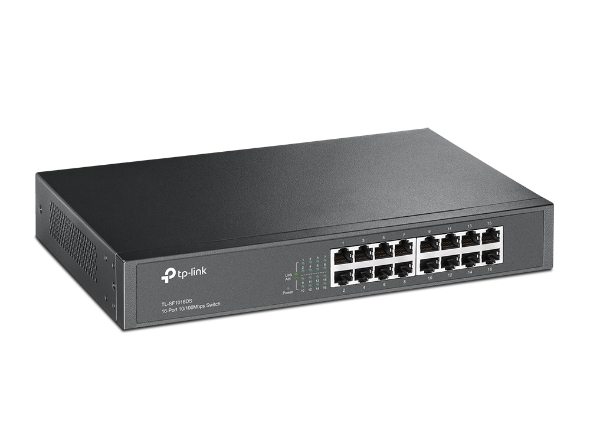

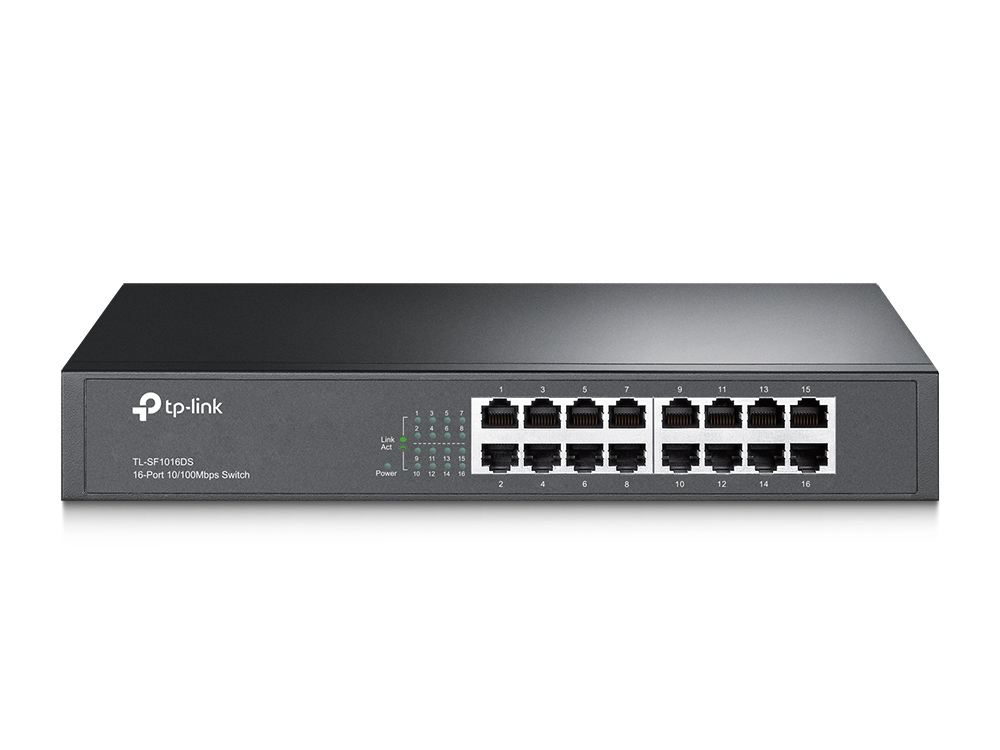

TP-Link TL-SF1016DS 16-Port 10/100Mbps Unmanaged Switch — 3.2 Gbps, Auto MDI/MDIX, Fanless Energy-Efficient Design
★ 0.0 Rating (0 user feedback)

SKU: TL-SF1016DS

Availability: In Stock

Brand: TP-Link

Category: Switches

$81.38


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

The TP-Link TL-SF1016DS is a robust 16-port unmanaged switch designed for small office or home network environments requiring reliable and efficient Ethernet connectivity. Featuring 16 10/100 Mbps RJ45 ports with Auto-Negotiation and Auto MDI/MDIX, it eliminates the need for crossover cables, simplifying setup with a true plug-and-play experience.

Built with a non-blocking switching architecture and a high 3.2 Gbps switching capacity, this switch ensures maximum throughput and low latency in data transfer. The TL-SF1016DS supports a store-and-forward switching scheme and can forward packets at a speed of 2.38 million packets per second.

Equipped with TP-Link Green Technology, it dynamically adjusts power consumption based on link status and cable length, saving up to 75% power and reducing environmental impact. The fanless design guarantees silent operation, while the rugged steel chassis and included rack-mount kit provide durable and flexible mounting options.

Additional features include an 8K MAC address table for efficient traffic management, IEEE 802.3x flow control for full-duplex mode, and backpressure for half-duplex to prevent packet loss under heavy loads. The switch offers an internal safety-certified power supply with universal 100–240 V AC input.

Certified for quality and safety compliance with FCC, CE, and RoHS, this device comes backed by a limited 5-year warranty, making it an excellent choice for expanding your network with dependable, energy-efficient switching performance.

For more details, visit the [official TP-Link product page](https://www.tp-link.com/au/business-networking/unmanaged-switch/tl-sf1016ds/).

Physical

Connector TypeYes
Cable TypeLimited 5 years
Pins0
Heat Spreader256
Form FactorFCC,CE,RoHS

Classification

CategoryFCC,CE,RoHS

Identification

Model0\u00b0C to 40\u00b0C
Part NumberDesk-top \/ Rack-mount (13 inch steel case)

Connectivity

Networking InterfacesInternal,100–240 V AC,50/60 Hz
WAN/LAN PortsYes,all ports
Ethernet Ports2.38 Mpps

Management

Management InterfacePower saving up to 75% using Green Technology

Technical

memory_type8192
Bands2 Mb
WiFi Speed (Mbps)8K entries
Voltage (V)0\u00b0C to 40\u00b0C
Module Configuration2.38
Total Capacity (GB)Unmanaged

Networking

Mesh TechnologyStore and Forward
BackhaulIEEE 802.3x (Full Duplex),Backpressure (Half Duplex)

Identifiers

Product Type3.2 Gbps
Model Number16 \u00d7 10\/100 Mbps RJ45

Identity

SeriesIEEE 802.3x

Performance

Tested Latency1
CAS Latency (CL)Fanless
SPD TimingsInternal,100–240 V AC,50/60 Hz
Tested Speed (MHz)Desk-top \/ Rack-mount (13 inch steel case)
Speed (MHz)3.2

General

Ports16 \u00d7 10\/100 Mbps RJ45
