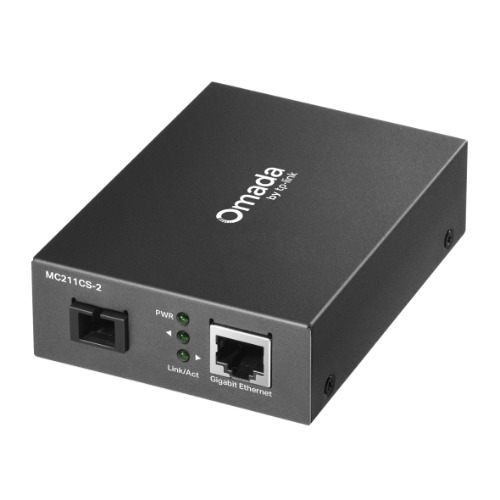

The TP-Link Omada Gigabit WDM Media Converter (MC211CS series) is a compact, high-performance device designed for bridging Gigabit Ethernet networks over copper and single-mode fiber cables. Utilizing advanced Wavelength Division Multiplexing (WDM) technology, this media converter transmits and receives data on one single fiber strand, effectively extending network reach without the need for multiple fiber lines.
Key features include a single 10/100/1000 Mbps RJ45 port with Auto MDI/MDIX support and a Gigabit SC/UPC fiber port. This converter supports auto-negotiation for duplex modes and speeds, ensuring optimal network performance and compatibility. The MC211CS-2 and MC212CS-2 models extend fiber distance up to 2 km, while the MC211CS-20 and MC212CS-20 models support distances up to 20 km, accommodating various enterprise deployment scenarios such as building linking, park security systems, and wireless access point extensions.
The device comes in a sleek, compact form factor (94.5 x 73 x 27 mm) with mounting slots for easy installation in varied environments. It operates reliably across a temperature range from -5°C to 50°C, and the package includes a 9 V / 0.6 A power adapter. LED indicators provide real-time status updates for power and link activity, enabling straightforward diagnostics.
With full compliance to IEEE 802.3 standards (802.3, 802.3u, 802.3ab, 802.3z) and support for flow control (802.3x), this media converter guarantees seamless integration into existing networks with stable signal conversion and extended reach.
Ideal for: Businesses and network professionals seeking to extend Ethernet connectivity cost-effectively over long distances using fiber optic cabling with high data throughput and minimal complexity.
Warranty: Backed by a 3-year manufacturer warranty for peace of mind.
For detailed product information, installation guides, and firmware updates, visit the [Omada Networks official website](https://www.omadanetworks.com/au/business-networking/omada-accessory-media-converter/mc211cs-2/).
| Auto-Negotiation | Supported on RJ45 port for speed and duplex mode |
| Fiber Technology | Wavelength Division Multiplexing (WDM) |
| Fiber Distance | Up to 2 km (MC211CS-2 / MC212CS-2),Up to 20 km (MC211CS-20 / MC212CS-20) |
| Power Supply | External 9 V \/ 0.6 A power adapter included |
| PoE Standard | Not supported |
| Power Supply | External 9 V \/ 0.6 A power adapter included |
| LED Indicators | Power and Link\/Activity |
| model_numbers | MC211CS-2,MC211CS-20,MC212CS-2,MC212CS-20 |
| Operating Humidity | 10%\u201390% RH non-condensing |
| Operating Temperature | -5\u00b0C to 50\u00b0C |
| Standards Compliance | IEEE 802.3,802.3u,802.3ab,802.3z,802.3x (flow control) |
| Virtual Functions | 0 |
| Copper Speed Support | 10\/100\/1000 Mbps |
| Storage Temperature | -40\u00b0C to 70\u00b0C |
| Ports | 1× 10/100/1000 Mbps RJ45,1× Gigabit SC/UPC fiber port |
| Dimensions | 94.5 \u00d7 73 \u00d7 27 mm |
| Number of Ports | 2 |
| Connector Type (Input) | RJ45 |
| Connector Type (Output) | SC\/UPC |
| Fibre Connector | SC\/UPC |
| maximum_fibre_range_km | 20 |
| Fibre Port | 1\u00d7 Gigabit SC\/UPC fiber port |
| Data Ports | 1× 10/100/1000 Mbps RJ45,1× Gigabit SC/UPC fiber port |
| Warranty | 3 years manufacturer warranty |
| transmission_rate_gbps_per_port | 1 |
| operating_temperature_c | -5\u00b0C to 50\u00b0C |
| Model Number | MC211CS-2,MC211CS-20,MC212CS-2,MC212CS-20 |
