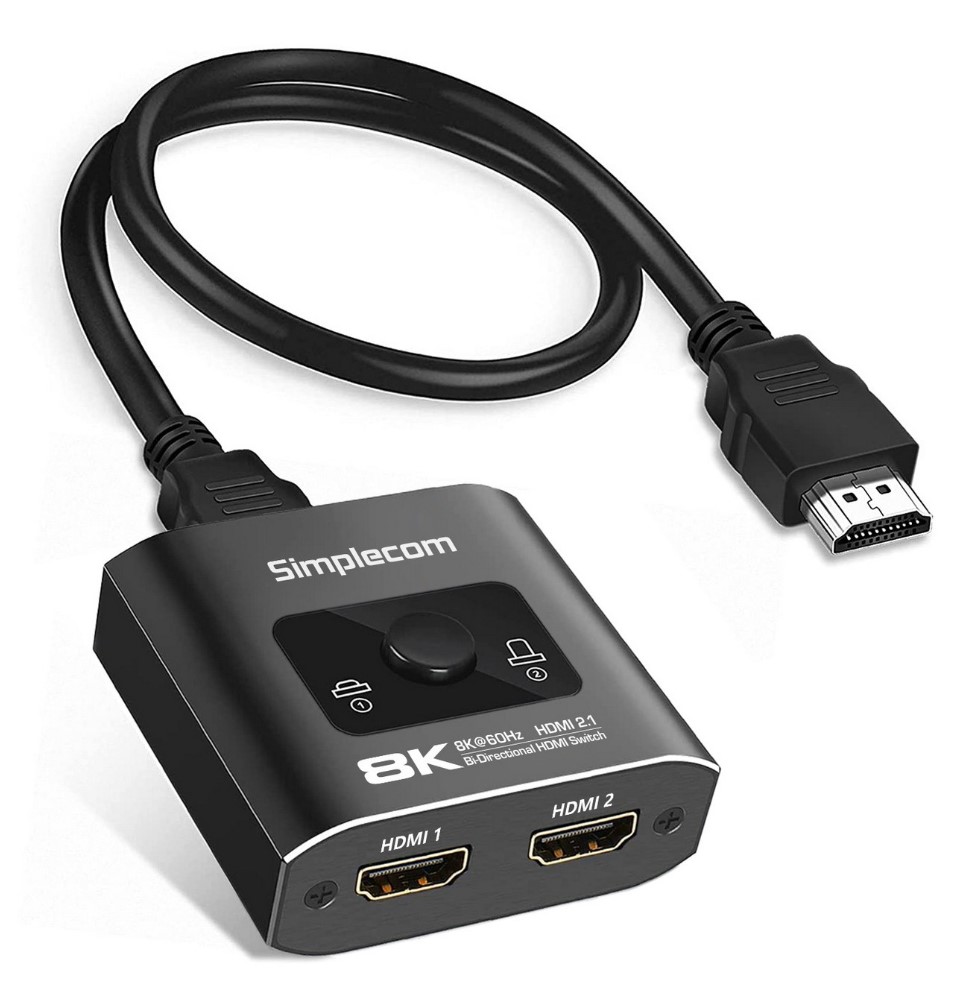

The Simplecom CM302V2 is a compact and versatile bi-directional HDMI 2.1 switch that simplifies managing your HDMI devices. With support for two inputs and two outputs, it enables you to effortlessly toggle between two HDMI sources or two displays using a manual toggle button. Compatible with the latest HDMI 2.1 specification, this switch supports ultra-high resolutions up to 8K@60Hz, as well as 4K@120Hz and 1080p@240Hz, making it perfect for gamers, home theater enthusiasts, and professional users.

Constructed with a durable aluminium alloy casing, the CM302V2 not only offers portability but also efficient heat dissipation during extended use. It supports a massive bandwidth of 48Gbps, ensuring smooth data transfer for high-resolution video and advanced audio formats including DTS-HD, Dolby TrueHD, Dolby Atmos, Dolby Digital, and LPCM 7.1.

Additional highlights include HDCP 2.3 compliance, HDR10 support for enhanced image quality, and power primarily supplied by the HDMI source device. In cases where the source device cannot provide enough power, a USB-C port allows backup power input at 5V to maintain stable operation. The switch requires no external adapters, simplifying installation and reducing cable clutter.

Important Notes:

• Maximum recommended HDMI cable length is 2 meters on both input and output sides.


• Manual toggle switch only; automatic switching is not supported.


• In 1 input to 2 outputs mode, simultaneous display on two screens is not possible.

• 1 x Simplecom CM302V2 Bi-Directional HDMI Switch


• 1 x HDMI Cable


• 1 x User Manual
