SKU: PRO B760M-A WIFI DDR4
Availability: In Stock
Brand: MSI
Category: Motherboards
100% Guarantee Safe Checkout

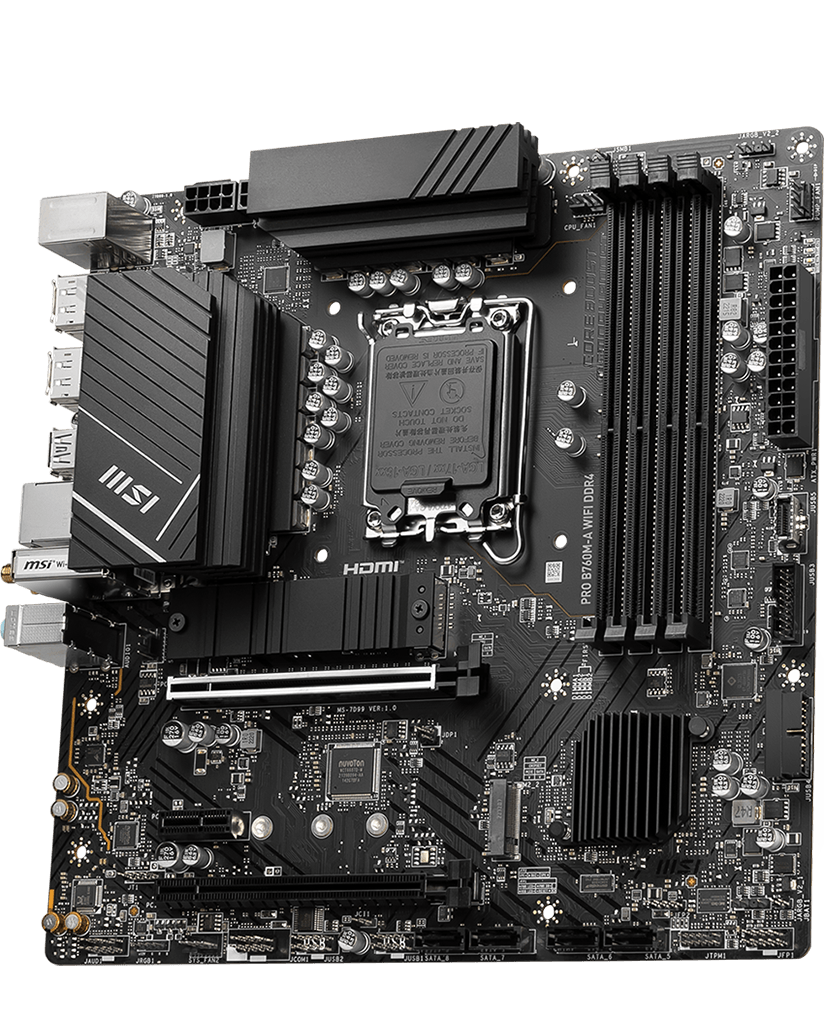

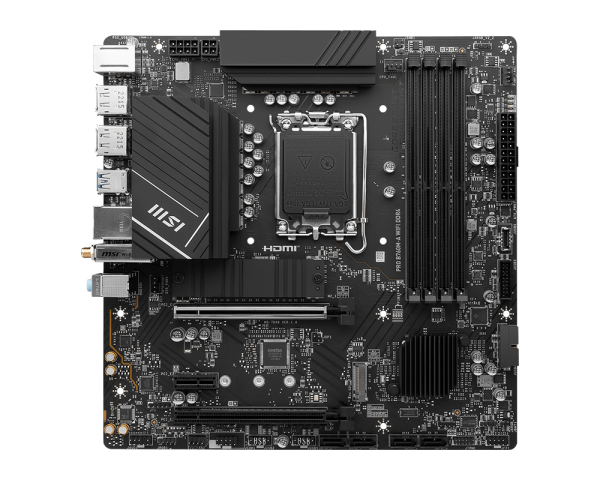

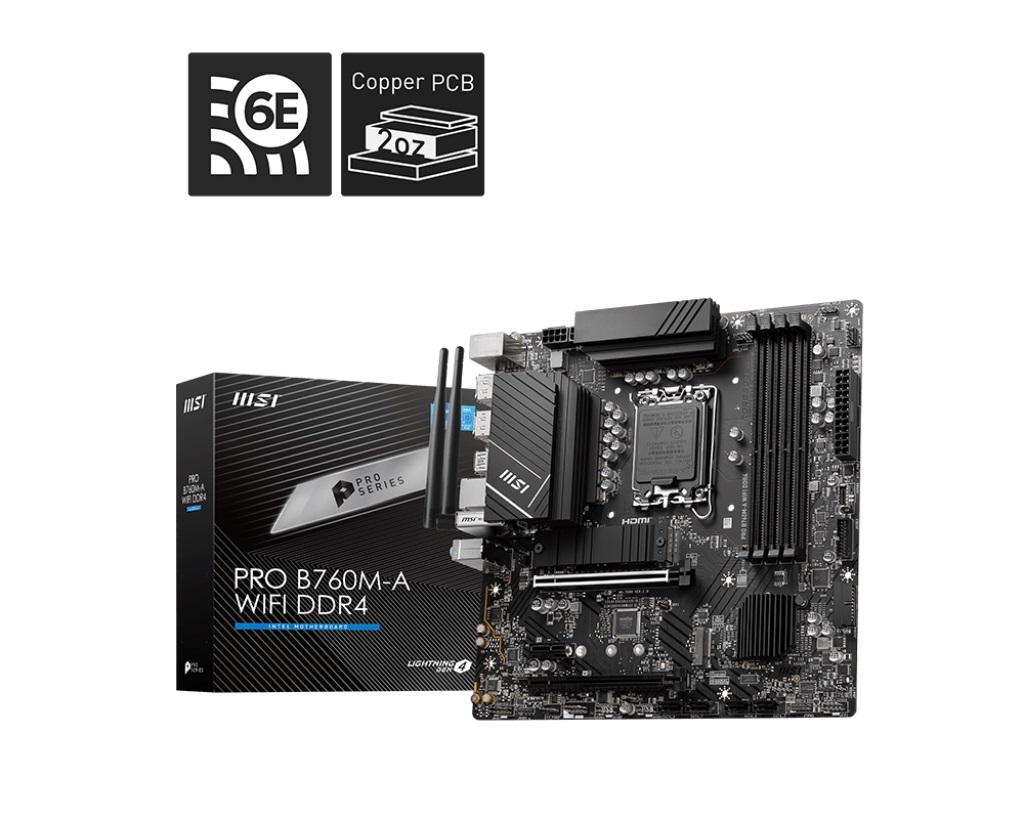

The MSI PRO B760M-A WIFI DDR4 is a powerful Micro-ATX motherboard designed for professional and business-class users looking for a compact yet highly capable platform. Built on the Intel B760 chipset, it supports 12th and 13th Gen Intel Core processors, as well as Pentium Gold and Celeron CPUs with the LGA 1700 socket.

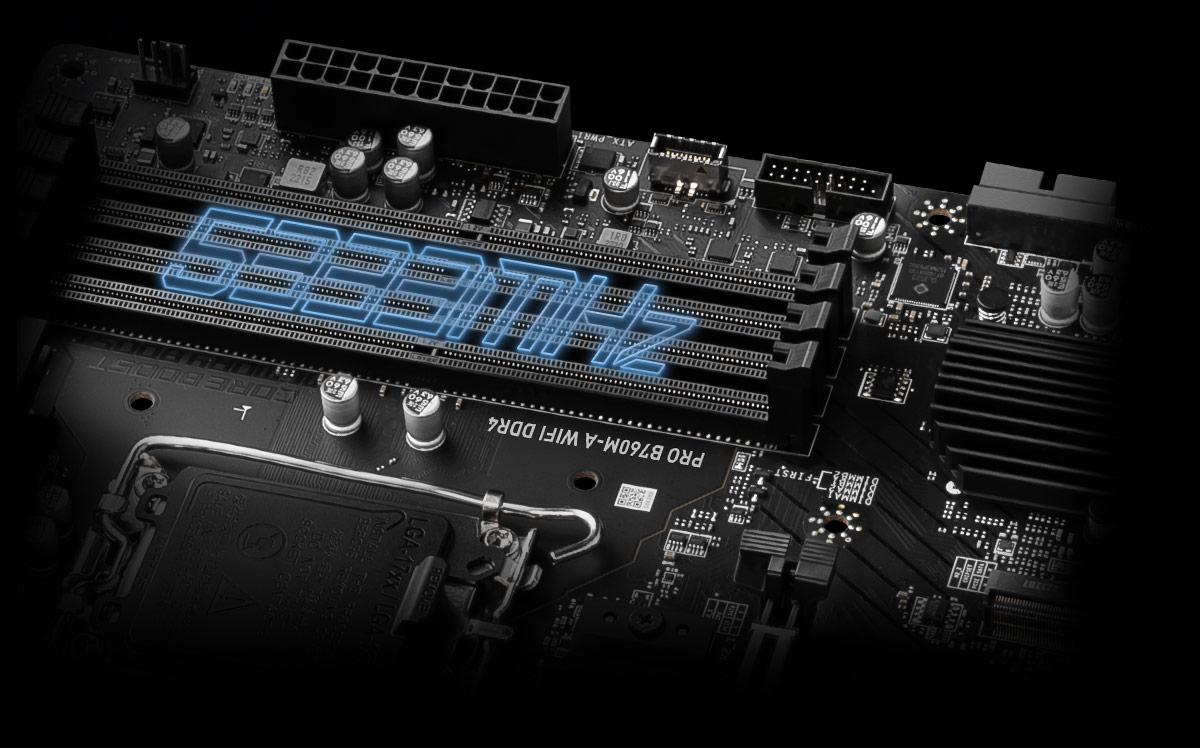

This board features a robust 12+1 Duet Rail power system with P-PAK and Core Boost technology, ensuring stable power delivery under heavy processing loads. It supports up to 128GB DDR4 RAM across 4 DIMM slots, with overclocking potential reaching DDR4 5333+ MHz (OC), plus XMP profile support.

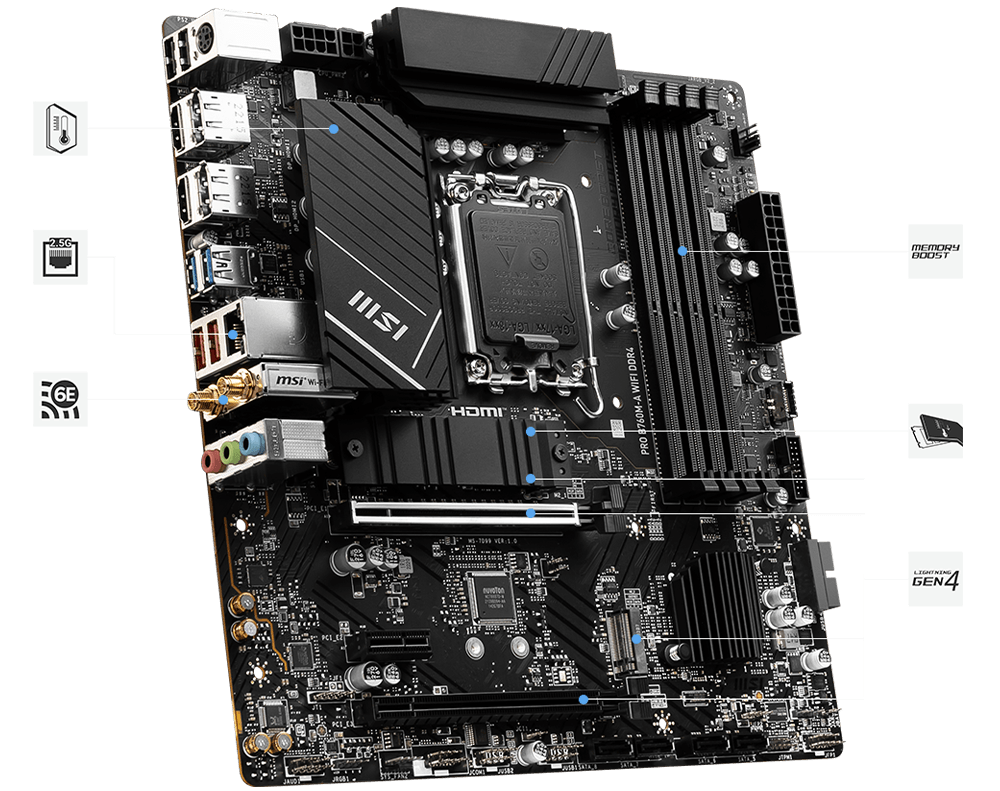

For expandability, the MSI PRO B760M-A WIFI offers dual PCIe x16 slots (primary reinforced with Steel Armor for enhanced durability), a PCIe x1 slot, and dual ultra-fast M.2 Gen4 x4 slots (one equipped with M.2 Shield Frozr for SSD thermal management), alongside four SATA 6Gb/s connectors for traditional storage.
Connectivity is a standout feature, with integrated Intel Wi-Fi 6E (Bluetooth 5.3) module and a Realtek 2.5Gb LAN port for flawless networking. The rear I/O includes HDMI 2.1 and DisplayPort 1.4 outputs supporting 4K 60Hz (dependent on CPU iGPU), multiple USB 3.2 Gen2 and Gen1 ports including Type-A and Type-C options, and 7.1-channel HD Audio enhanced by Audio Boost technology.
Cooling solutions are enhanced with extended VRM heatsinks, MOSFET thermal pads, and a 6-layer PCB with thickened copper to maintain optimal temperature under pressure.
Ideal for small form factor business builds, gaming rigs, or workstation setups requiring solid performance and advanced connectivity, the MSI PRO B760M-A WIFI DDR4 motherboard delivers a perfect balance of power and features in a Micro-ATX form factor.
---
| SKU | Windows 10 64-bit,Windows 11 64-bit |
| Product Type | Intel Wi-Fi 6E (802.11ax) |
| Model Number | Realtek 2.5Gb Ethernet |
| Warranty (years) | 1x 24-pin ATX,8-pin + 4-pin CPU power connectors |
| Material | USB 3.2 Gen2 Type-A,USB 3.2 Gen1 Type-A,USB 2.0 |
| Height | Realtek 2.5Gb Ethernet |
| Width | Intel Wi-Fi 6E (802.11ax),Bluetooth 5.3 |
| Length | 4x SATA 6Gb\/s |
| Weight | PCIe x16 (Primary Steel Armor),1x PCIe 3.0 x1 |
| Dimensions (L x W x H) | M.2 Gen4 x4 (2280/2260/2242),1 with M.2 Shield Frozr |
| Connector Feature | DDR4 up to 5333+ MHz (OC),XMP supported |
| Connector Type | 128GB |
| Cable Type | 4x DDR4 DIMM |
| Heat Spreader | 128 |
| Form Factor | DDR4 |
| Pins | 4 |
| Maximum Resolution | HDMI 2.1,DisplayPort 1.4 (Integrated GPU required) |
| Interface | 4x USB 3.2 Gen1 Type-A,4x USB 2.0,1x USB 3.2 Gen1 Type-C |
| Bands | 1x 24-pin ATX,8-pin + 4-pin CPU power connectors |
| WiFi Speed (Mbps) | 7.1-Channel HD Audio with Audio Boost |
| Voltage (V) | Intel B760 |
| Module Configuration | 243.84 x 243.84 |
| Total Capacity (GB) | Micro-ATX |
| Audio Support | 7.1-Channel HD Audio with Audio Boost |
| memory_type | MSI |
| Model | PRO B760M-A WIFI DDR4 |
| Supported Data Rate | Micro-ATX (243.84mm x 243.84mm) |
| Tested Latency | 2 |
| SPD Timings | 12th/13th Gen Intel Core,Pentium Gold,Celeron |
| CAS Latency (CL) | LGA 1700 |
| Speed (MHz) | 243 |
| Tested Speed (MHz) | 243 |
| Category | 12th/13th Gen Intel Core,Pentium Gold,Celeron |
| Networking Interfaces | PRO B760M-A WIFI DDR4 |
| WAN/LAN Ports | PCIe x16 (Primary Steel Armor),1x PCIe 3.0 x1 |
| Ethernet Ports | Bluetooth 5.3 |
| Model | LGA 1700 |
| Part Number | Intel B760 |
| Backhaul | 1 |
| Mesh Technology | channel |
| Series | 5333 |
