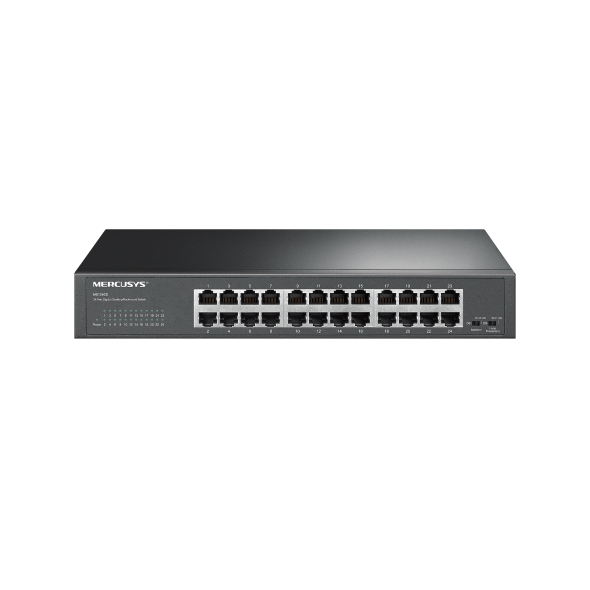

Mercusys MS124GS 24-Port Gigabit Ethernet Switch – Desktop/Rackmount with Auto-Negotiation, Isolation Mode & Loop Prevention
★ 0.0 Rating (0 user feedback)

SKU: MS124GS

Availability: In Stock

Brand: Mercusys

Category: Switches

$139.00


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

Mercusys MS124GS 24-Port Gigabit Desktop/Rackmount Switch is a robust unmanaged Ethernet switch designed for expanding and optimizing wired networks with ease. Featuring 24 RJ45 ports supporting full gigabit speeds (10/100/1000 Mbps) with Auto-Negotiation and Auto-MDI/MDIX, it ensures seamless device connectivity without manual configuration.

This switch supports *plug-and-play* operation for hassle-free setup, making it ideal for small to medium business environments or advanced home networks. Key performance and security features include Isolation Mode, allowing one-click client traffic separation to enhance network security and performance, and Loop Prevention, which actively monitors and addresses potential network loops that could disrupt connectivity.

Housed in a durable metal casing, the MS124GS benefits from efficient heat dissipation, prolonging device longevity during continuous operation. The switch supports essential Ethernet standards (IEEE 802.3i/u/ab), advanced flow/control mechanisms (802.3X Flow Control), and quality of service protocols (802.1p/DSCP QoS) to maintain optimal network traffic management.

Additional highlights include a 48 Gbps switching capacity, an 8K MAC address table, and intuitive LED indicators to display power, link/activity, and 1000 Mbps connection status. Its compact dimensions (294 × 140 × 44 mm) allow versatile placement on desktops or rack mounting in professional environments.

The MS124GS operates on a wide voltage range (100-240 VAC) and is certified to CE and RoHS standards, ensuring reliability and compliance. It is backed by a 5-year warranty for peace of mind.

Ideal for: IT professionals, businesses expanding network infrastructure, and tech-savvy users seeking stable, high-speed LAN connectivity with enhanced security features.

For more information, visit the [official Mercusys product page](https://www.mercusys.com/au/product/details/ms124gs/).

Physical

Storage Temperature-40 \u00b0C to 70 \u00b0C
Dimensions (WxDxH)294 \u00d7 140 \u00d7 44 mm (11.6 \u00d7 5.5 \u00d7 1.7 in)
Number of Ports24
Rack Mount CompatibilityRackmount compatible
Dimensions (mm)294 \u00d7 140 \u00d7 44 mm
MaterialDurable metal casing
Form FactorDesktop\/Rackmount
Ports24 ports,10/100/1000 Mbps RJ45

General

Part Number / SKUMS124GS
Quality of Service (QoS)802.1p\/DSCP
Operating Voltage100–240 VAC,50/60 Hz
Flow Control802.3X
Loop PreventionYes
MAC Address Table8K entries
Isolation ModeYes,one-click client traffic separation
Auto-MDI/MDIXYes
Auto-NegotiationYes
ManagementUnmanaged
Port Type10\/100\/1000 Mbps RJ45

Support

Warranty5 years

Environmental

Operating Humidity10%\u201390% non-condensing
Operating Temperature0 \u00b0C to 40 \u00b0C
operating_humidity_percent10%\u201390% non-condensing

Identifiers

SKUMS124GS

Technical

ports_10g0
standards_protocols802.3X,802.1p/DSCP
mac_table_size8192

Performance

Switching Capacity48 Gbps
switching_capacity_gbps48

Compliance

CertificationsCE,RoHS

Environment

operating_temperature_c0 \u00b0C to 40 \u00b0C

Power

Power Input100–240 VAC,50/60 Hz
