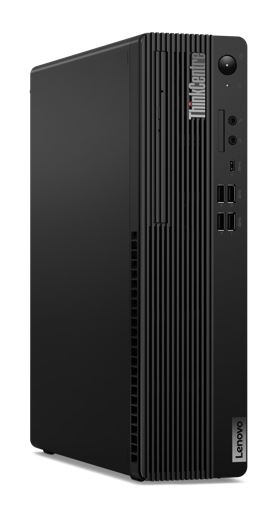

LENOVO ThinkCentre M70s G5 SFF Desktop PC i5-14400 16GB DDR5 512GB NVMe SSD Windows 11 Pro WiFi 6E UHD Graphics Keyboard Mouse
★ 0.0 Rating (0 user feedback)

SKU: 12U30016AU

Availability: In Stock

Brand: LENOVO

Category: Desktop Computers

$1,799.00


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

The LENOVO ThinkCentre M70s Gen 5 (Intel) Small Form Factor Desktop PC combines powerful performance and compact design to suit business environments and professional use. Powered by the 14th Gen Intel Core i5-14400 processor featuring 10 cores (6 performance + 4 efficiency) and 16 threads, it delivers fast and efficient multitasking with base clocks of 2.5 GHz (P-core) and boosts up to 4.7 GHz. Equipped with 16GB DDR5-4800 memory in dual-channel mode and a rapid 512GB M.2 NVMe PCIe Gen 4 SSD, it ensures smooth operation and quick file access.

This desktop features integrated Intel UHD Graphics 730, ideal for everyday computing and multimedia. Networking options include Intel Wi-Fi 6E AX201 (802.11ax) with Bluetooth 5.2 and Gigabit Ethernet for reliable connectivity. The SFF chassis (8.2 liters) provides flexibility with PCIe slots (1x x16, 1x x1, low profile) to expand graphics or other cards.

Connectivity ports include USB-C front port with 15W charging, multiple USB-A 3.2 Gen 1 and USB 2.0 ports, HDMI 2.1, DisplayPort 1.4a, and audio jacks. The system runs Windows 11 Pro and offers a comprehensive security suite featuring TPM 2.0 and a Kensington lock slot. Backed by a 3-year onsite warranty, MIL-STD-810H military-grade tested durability, and energy certifications like ENERGY STAR 8.0 and EPEAT Gold, the ThinkCentre M70s is a robust, secure, and efficient solution for professional desktop computing.

Included accessories are a USB traditional keyboard and USB Calliope mouse, both in classic black, delivering a ready-to-use package.

Ideal for office productivity, digital content creation, and reliable business computing, the Lenovo ThinkCentre M70s G5 is engineered for performance, security, and manageability in a compact footprint.

Compliance

CertificationsENERGY STAR 8.0,EPEAT Gold,ErP Lot 3,GREENGUARD,RoHS,TCO 9.0

General

Military-grade TestingMIL-STD-810H passed (Altitude,Temp,Shock,Dust,Vibration,etc.)
Storage ExpandabilitySupports up to three drives (1x 3.5" HDD,1x 2.5" HDD,1x M.2 SSD)
Optical DriveNone
Maximum Memory SupportedUp to 64GB DDR5
Processor Cache20 MB
Video OutputHDMI 2.1,DisplayPort 1.4a
aio_form_factorSmall Form Factor (SFF)
effective_memory_slots2
cpu_cache_mb20

Physical

Dimensions (WxDxH)92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)
WeightApprox. 5.3 kg (11.7 lbs)
Form FactorSmall Form Factor (SFF),8.2 Liters
PortsFront: 1x USB-C (USB 3.2 Gen1,5Gbps,15W charging),4x USB-A (USB 3.2 Gen1,5Gbps); Rear: 4x USB-A (USB 2.0),HDMI 2.1,DisplayPort 1.4a
weight_kg5.3
Dimensions (mm)92.5 x 297.7 x 339.5

Software

Operating SystemWindows 11 Pro
Operating SystemWindows 11 Pro

Security

Security FeaturesDiscrete TPM 2.0 (TCG and FIPS 140-2 certified),Kensington Security Slot,Padlock loop

Internal

Storage512GB M.2 2280 PCIe 4.0x4 NVMe SSD,Opal 2.0
Memory16GB (2x8GB) DDR5-4800 UDIMM,channel capable
ChipsetIntel Q670

Audio

AudioHigh Definition Audio,Realtek ALC623-CG codec,1W speaker

Technical

USB PortsFront: 1x USB-C (USB 3.2 Gen1,5Gbps,15W charging),4x USB-A (USB 3.2 Gen1,5Gbps) / Rear: 4x USB-A (USB 2.0)
ProcessorIntel Core i5-14400 (10 cores: 6 Performance + 4 Efficiency,16 threads),2.5 GHz base (P-core),up to 4.7 GHz boost (P-core)
Bluetooth Version5.2
CPU Threads16
base_clock_speed_ghz2.5
boost_clock_speed_ghz4.7
memory_typeDDR5
CPU Cores10
Processor ModelIntel Core i5-14400

Support

Warranty3 years onsite

Power

Power Supply260W,90% efficiency

Expansion

M.2 Slots2 slots (1 for WLAN,1 for SSD)
PCIe Expansion Slots1x PCIe 3.0 x16 low profile,1x PCIe 3.0 x1 low profile

Graphics

Integrated GraphicsIntel UHD Graphics 730
GraphicsIntel UHD Graphics 730 integrated GPU

Identifiers

SKUThinkCentre M70s G5 SFF

Memory

Memory SlotsDDR5 UDIMM slots
memory_speed_mtu_s4800
max_memory_capacity_gb64

Warranty

Warranty (years)3

Connectivity

wi_fi_standard802.11ax 6E
ethernet_speed_gbps1
NetworkingIntel Wi-Fi 6E AX201 (802.11ax 2x2) + Bluetooth 5.2,Gigabit Ethernet RJ-45

Storage

Storage InterfacePCIe 4.0x4
storage_capacity_gb512
Storage TypeNVMe SSD
