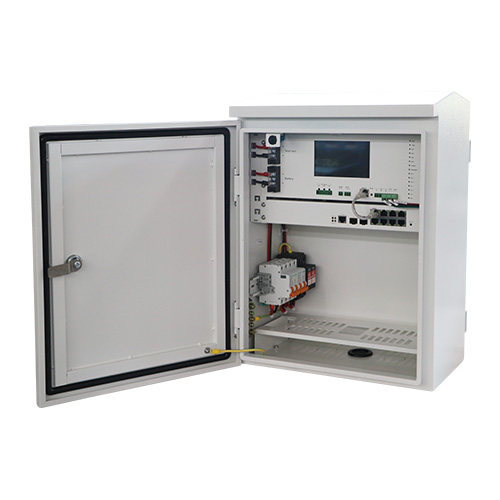

LDR Outdoor Smart Solar Box IP55 Waterproof Cabinet with 5-Inch Touch Screen, MPPT Controller, 8-Port PoE Switch (2 x 90W, 6 x 30W), L2 Management, Solar Input <100VDC
★ 0.0 Rating (0 user feedback)

SKU: RCLDR-DB-QU3082SPG-T

Availability: In Stock

Brand: LDR

Category: Switches

$1,131.24


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

LDR Outdoor Smart Solar Box is a robust and versatile solution designed for outdoor solar-powered network and surveillance applications. Encased in a durable IP55-rated waterproof and anti-rust cabinet, this smart box is engineered to withstand harsh environments while providing seamless solar power management and network connectivity.

Featuring an integrated MPPT solar charge controller, it supports solar input below 100 VDC and requires a customer-supplied 12 V lead-acid or lithium battery and external solar panels. The box incorporates an 8-port unmanaged network switch with Power over Ethernet (PoE) capabilities—2 ports deliver up to 90W each, and 6 ports deliver up to 30W each—alongside 2× 1000M SFP ports for flexible high-speed connectivity.

Advanced Layer 2 management features enable QoS, VLAN, MSTP, multicast support, port control, and PoE management, allowing efficient traffic handling and power distribution. The system also includes 3 remotely controllable DC power output channels equipped with voltage and current monitoring, circuit breakers, and surge protection, ensuring safe and reliable operation.

A vibrant 5-inch touch screen with 480×800 resolution offers local monitoring and control. Users can easily view solar parameters, battery status, alarms, and modify settings such as IP configurations, humidity, temperature, and serial number directly on-site.

With dimensions of approximately 500mm × 380mm × 220mm and a weight of around 15 kg, this smart solar box is ideal for outdoor installations including surveillance monitoring, forest monitoring, and other remote applications requiring reliable solar-powered networking.

Key Benefits:

  • Certified IP55 waterproof and anti-rust enclosure for extended outdoor durability

  • Integrated MPPT controller optimizes solar battery charging

  • High-power PoE ports support demanding devices such as cameras and access points

  • Comprehensive L2 network management for optimized performance

  • Onboard surge protection and circuit breakers enhance safety

  • User-friendly 5-inch touch display for real-time monitoring and configuration
Note: Battery and solar panels must be supplied separately by the user.

For detailed usage and configuration guides, please refer to user manuals and software documentation provided with the product.

Physical

Dimensions (L x W x H)380 \u00d7 220 \u00d7 500
Weight (Net)15
MaterialAnti-rust treated enclosure
Form FactorOutdoor Waterproof Cabinet
Ports8 × 10/100/1000M Base-T PoE,2 × 1000M SFP

Power

PoE Power per Port90
PoE StandardPoE,PoE+ (max 30W per port,90W on 2 ports)
Power Input< 100 VDC solar power input
Total PoE Power Budget360

Identifiers

SKURCLDR-DB-QU3082SPG-T

Technical

10G Ports0
Layer SupportLayer 2 Management Features: QoS,VLAN,MSTP,Multicast,Port Management,PoE Management
Standards & ProtocolsIEEE 802.3af\/at\/bt PoE standards (implied)

Management

Management InterfaceRemote control platform available

Display

Display5-inch capacitive touch screen,480 × 800 resolution
