SKU: GV-N5070WF3OC-12GD
Availability: In Stock
Brand: Gigabyte
Category: Graphics Cards
100% Guarantee Safe Checkout

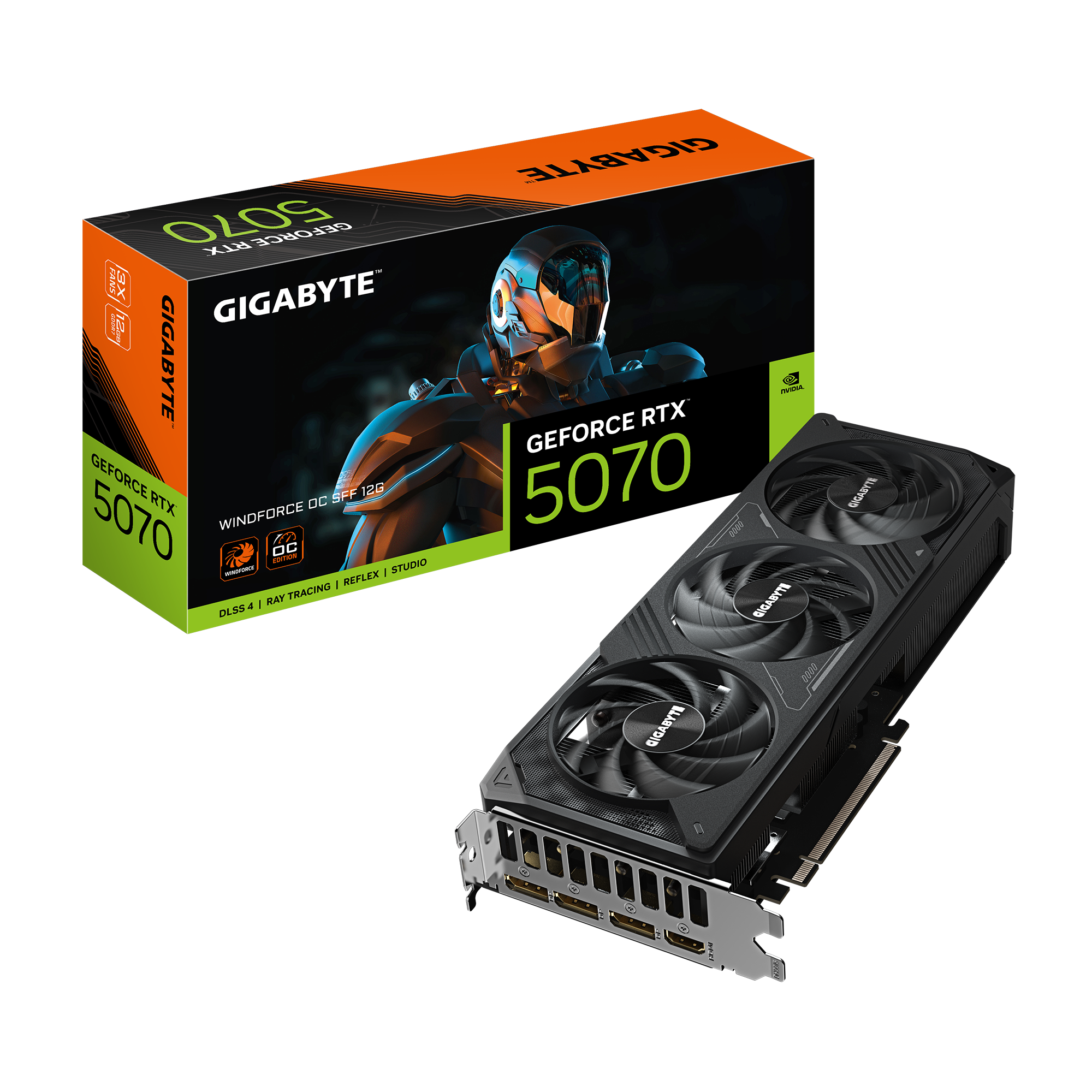

The GIGABYTE GeForce RTX 5070 WINDFORCE OC SFF 12G is a high-performance, small form factor (SFF) graphics card designed for gamers and creators who demand powerful visuals in compact builds. Powered by NVIDIA's advanced Blackwell architecture, this card integrates 6,144 CUDA cores and a factory overclocked core speed of 2542 MHz, delivering stunning frame rates and smooth gameplay.
Equipped with a lightning-fast 12GB of GDDR7 memory on a 192-bit interface running at an effective speed of 28 Gbps, it ensures rapid data handling for demanding titles and professional workloads. The PCI Express 5.0 interface maximizes bandwidth for future-proof system compatibility.
The innovative WINDFORCE cooling system incorporates Hawk fan technology with alternate spinning and 3D active fans for efficient airflow and reduced noise. Server-grade thermal conductive gel, a large copper plate, composite copper heat pipes, and extended heatsinks contribute to excellent thermal management, enabling sustained performance under load.
Connectivity includes three DisplayPort 2.1b ports and one HDMI 2.1b port supporting up to 7680x4320 resolution, ideal for multi-monitor setups or ultra-high-definition displays. The card features a reinforced metal backplate to ensure structural integrity within tight enclosures.
Additional features include support for NVIDIA DLSS 4, fourth-gen ray tracing cores, fifth-gen Tensor cores, and NVIDIA Studio and Broadcast enhancements, making it an ideal choice for gaming and creative tasks. Recommended system power supply is 750W, supported via a single 16-pin power connector with included adapter for traditional PCIe power connectors.
Key Highlights:
| Max Digital Resolution | 7680 \u00d7 4320 |
| Card Dimensions | 282mm \u00d7 110mm \u00d7 50mm |
| Cooling System | WINDFORCE with Hawk fan,thermal gel,and composite copper heat pipes |
| PCIe Interface | PCI Express 5.0 x16 |
| Power Connector | 1 \u00d7 16-pin (adapter included) |
| Memory Interface | 192-bit |
| GPU Model | NVIDIA GeForce RTX 5070 |
| Core Clock | 2542 MHz (Factory Overclocked) |
| Form Factor | Small Form Factor (SFF),ATX PCB |
| Form Factor | Small Form Factor (SFF),ATX PCB |
| dimensions_lxwxh_mm | 282mm \u00d7 110mm \u00d7 50mm |
| Dimensions (mm) | 282mm \u00d7 110mm \u00d7 50mm |
| Cooling Solution | WINDFORCE with Hawk fan,thermal gel,and composite copper heat pipes |
| Display Outputs | 3 × DisplayPort 2.1b,1 × HDMI 2.1b |
| Memory Speed | 28 Gbps effective |
| Memory Size | 12 GB |
| memory_clock_speed_gbps | 28 |
| memory_bus_width_bits | 192 |
| memory_size_gb | 12 |
| Recommended PSU | 750W |
| recommended_psu_watts | 750 |
| memory_type | GDDR7 |
| CUDA Cores | 6144 |
| max_resolution | 7680 \u00d7 4320 |
| CUDA Cores | 6144 |
| memory_type | GDDR7 |
| interface_pcie_version | PCIe 5.0 |
| interface_pcie_lanes | x16 |
| Model | NVIDIA GeForce RTX 5070 |
