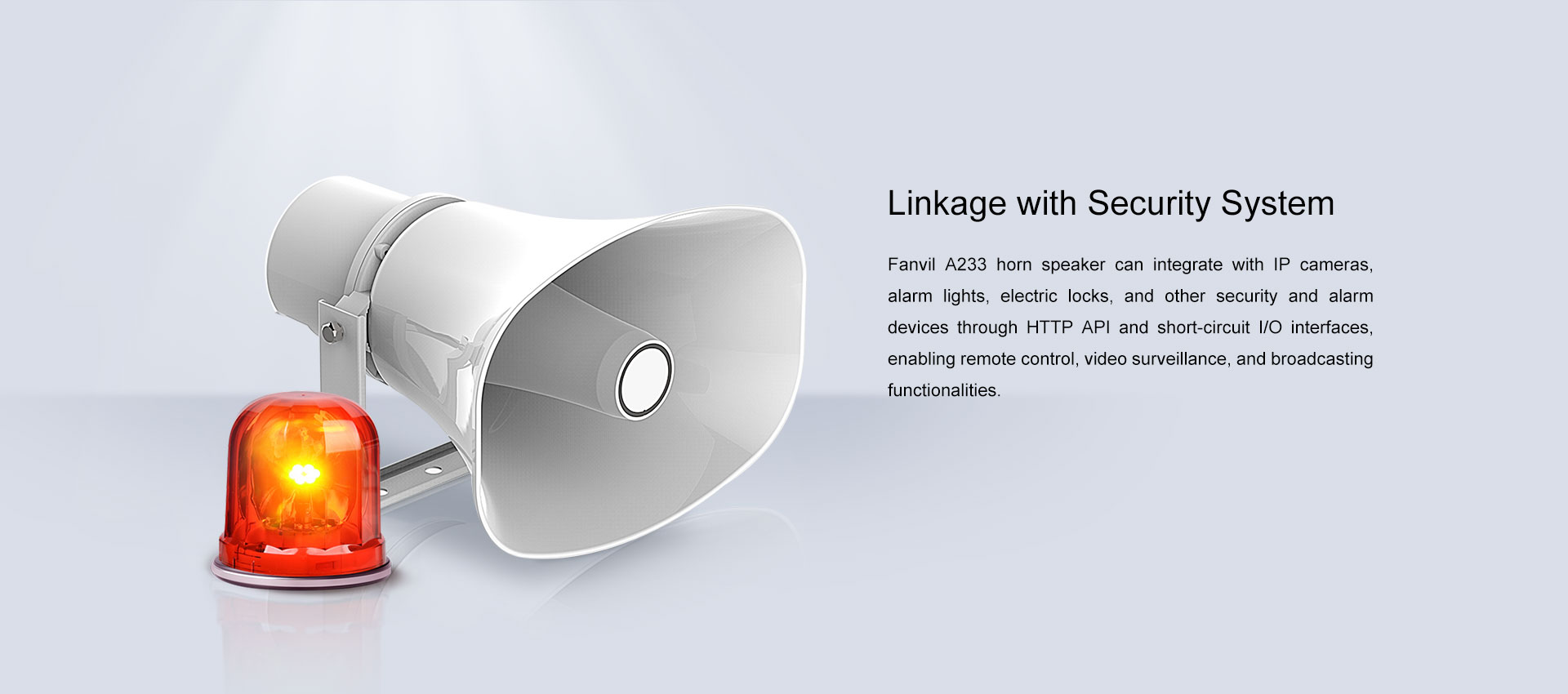

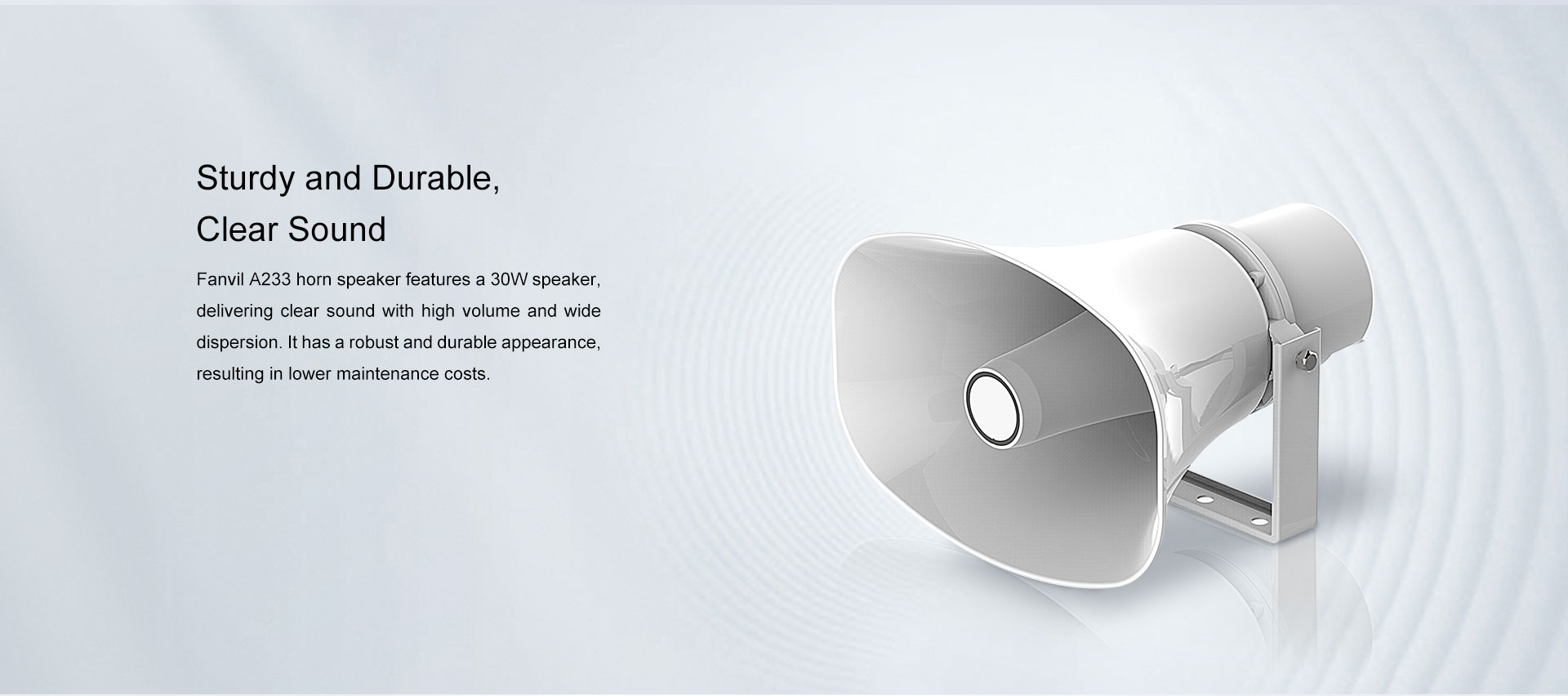

The Fanvil A233 Horn Speaker is a robust, commercial-grade IP audio terminal designed for both indoor and outdoor environments. Engineered for excellent sound quality, it supports HD intercom and lossless music broadcast for crystal-clear paging and two-way communication. The speaker operates independently or seamlessly integrates with various systems such as unified communication, video surveillance, Fanvil broadcast & intercom, access control, digital billboards, and fire alarms, enabling unified configuration and control.

With the widely compatible SIP protocol and HTTP API, the A233 offers flexible integration with third-party systems. It additionally features short-circuit input/output and video linkage capabilities for enhanced functionality. Multiple operating modes include serverless, converged communication, Fanvil broadcast system, and external linkage modes, allowing adaptable deployment tailored to diverse business needs.

Management is streamlined through web interfaces, Device Management (DM) software, FDMCS, and the Fanvil broadcast & intercom app for remote monitoring and configuration.

Designed for harsh environments, the unit boasts an IP66 rating, ensuring dust-tight and waterproof protection suitable for outdoor placement. Power is efficiently supplied via PoE/PoE+ (IEEE 802.3at) or a DC 24V/2A input. The built-in microphone supports self-test monitoring, while 24 MB of internal audio storage enables scheduled broadcasts. Additional features include support for up to 20 multicast partitions, remote volume adjustment, and priority management for emergency situations.

Key Benefits:

• High-quality HD audio for paging and intercom


• Flexible integration with multiple communication and control systems


• Durable IP66-rated weatherproof design


• Multiple power options including PoE for ease of installation


• Advanced management and monitoring tools
