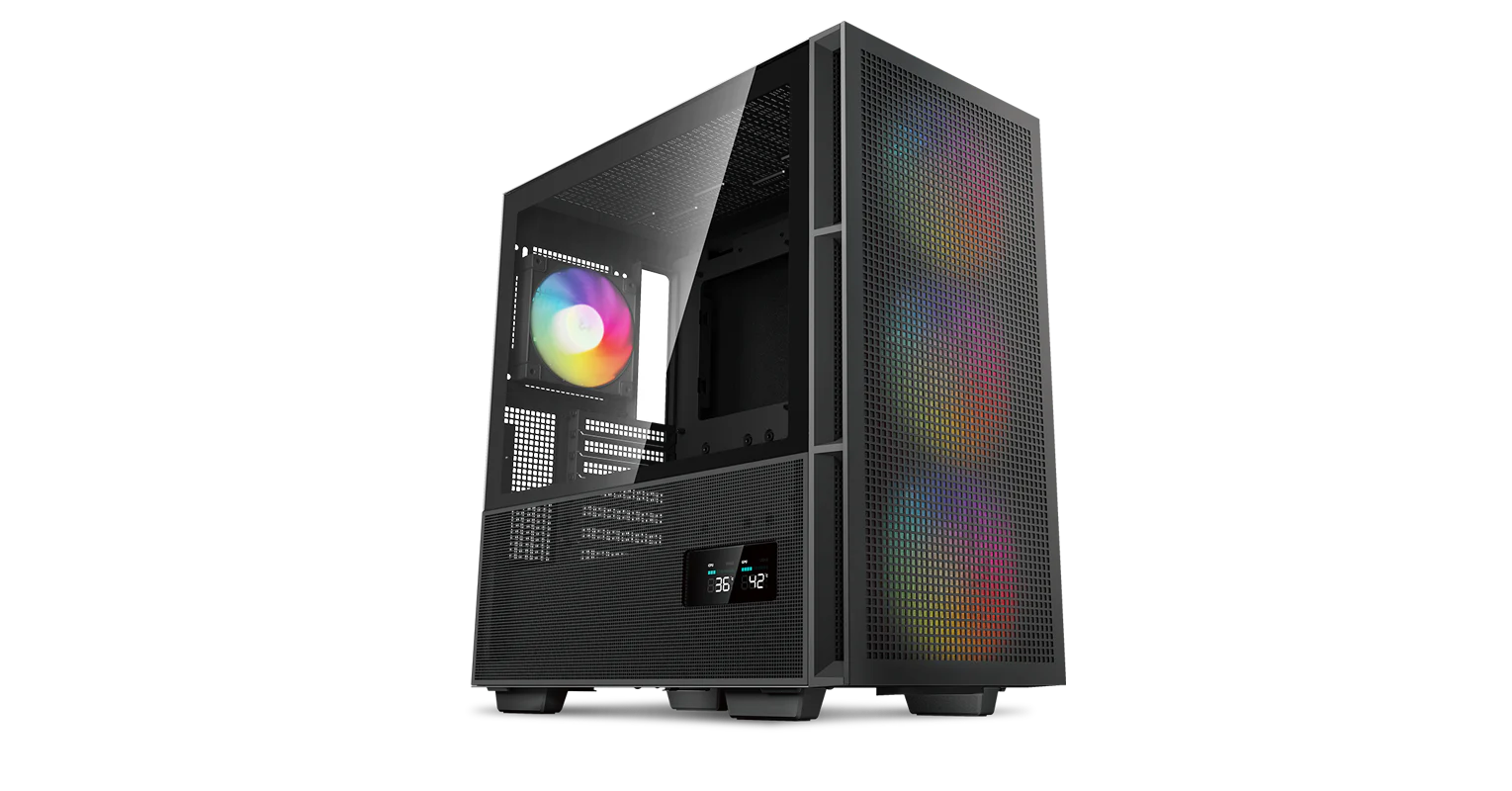

DeepCool CH560 DIGITAL High Airflow Mid-Tower ATX Case with Tempered Glass, Magnetic Hybrid Mesh, 3x 140mm ARGB Fans & Dual-Status Digital Display
★ 0.0 Rating (0 user feedback)

SKU: R-CH560-BKAPE4D-G-1

Availability: In Stock

Brand: DeepCool

Category: PC Cases

$204.42


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

The DeepCool CH560 DIGITAL is a high-performance mid-tower PC case designed for superior airflow and advanced system monitoring. Its innovative *hybrid tempered glass and magnetic mesh side panel* ensures excellent component visibility while enhancing ventilation for modern, high-end GPUs. Equipped with three pre-installed 140mm ARGB PWM fans at the front and one 120mm ARGB fan at the rear, this case maximizes cooling efficiency.

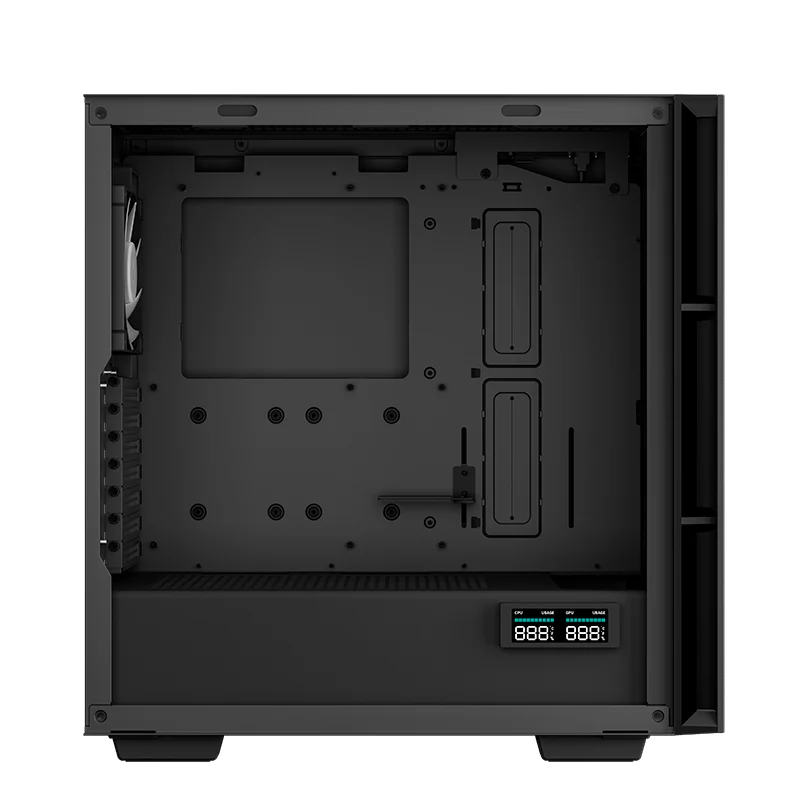

A standout feature is the integrated dual-status digital display, providing real-time CPU and GPU temperature or utilization updates that switch every 5 seconds. This display is customizable via the DeepCool app, empowering users with instant hardware diagnostics.

The CH560 DIGITAL supports motherboards from Mini-ITX to E-ATX, CPU coolers up to 175mm tall, GPUs up to 380mm in length, and PSUs up to 170mm (ATX PS2 standard). It offers versatile radiator support with front and top mounts accommodating sizes up to 360mm, and rear mounts for up to 140mm radiators.

Designed for ease of building and maintenance, it includes *magnetic dust filters*, a *magnetic hybrid panel* with optional security screws, an integrated GPU support arm, and approximately 26mm of cable management space behind the motherboard tray. The front I/O panel features *USB Type-C*, *USB 3.0*, and a hybrid audio jack for convenience.

Constructed from durable ABS, SPCC steel, and tempered glass, this chassis blends style, functionality, and high airflow cooling capabilities, making it ideal for gaming rigs and performance workstations.

Technical

PSU Support Form FactorATX PS2 (max length 170 mm)
Radiator SupportFront up to 360mm; Top up to 360mm; Rear up to 140mm
Maximum CPU Cooler Height175
Maximum GPU Length380

Storage

Drive Bays Description3.5\"; 3 x 2.5\" (2+1)

Performance

Pre-installed Fans3x140mm ARGB (front),1x120mm ARGB (rear)

Physical

Net Weight7.5
MaterialABS; SPCC Steel; Tempered Glass
Panel TypeMagnetic Hybrid Tempered Glass \/ Mesh
Dimensions (L x W x H)458 x 230 x 471
Form FactorMid-Tower

Compatibility

Motherboard SupportMini-ITX, Micro-ATX, ATX, E-ATX
