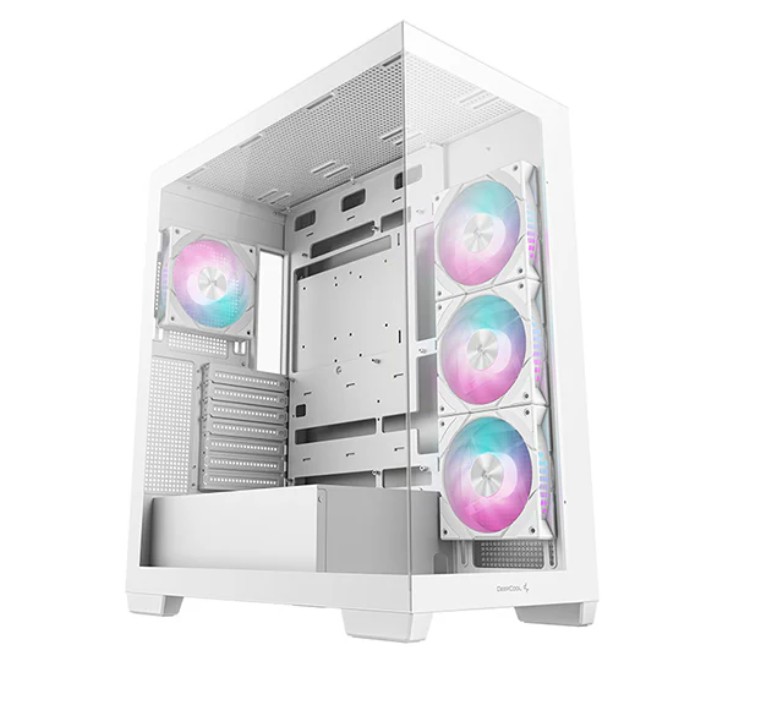

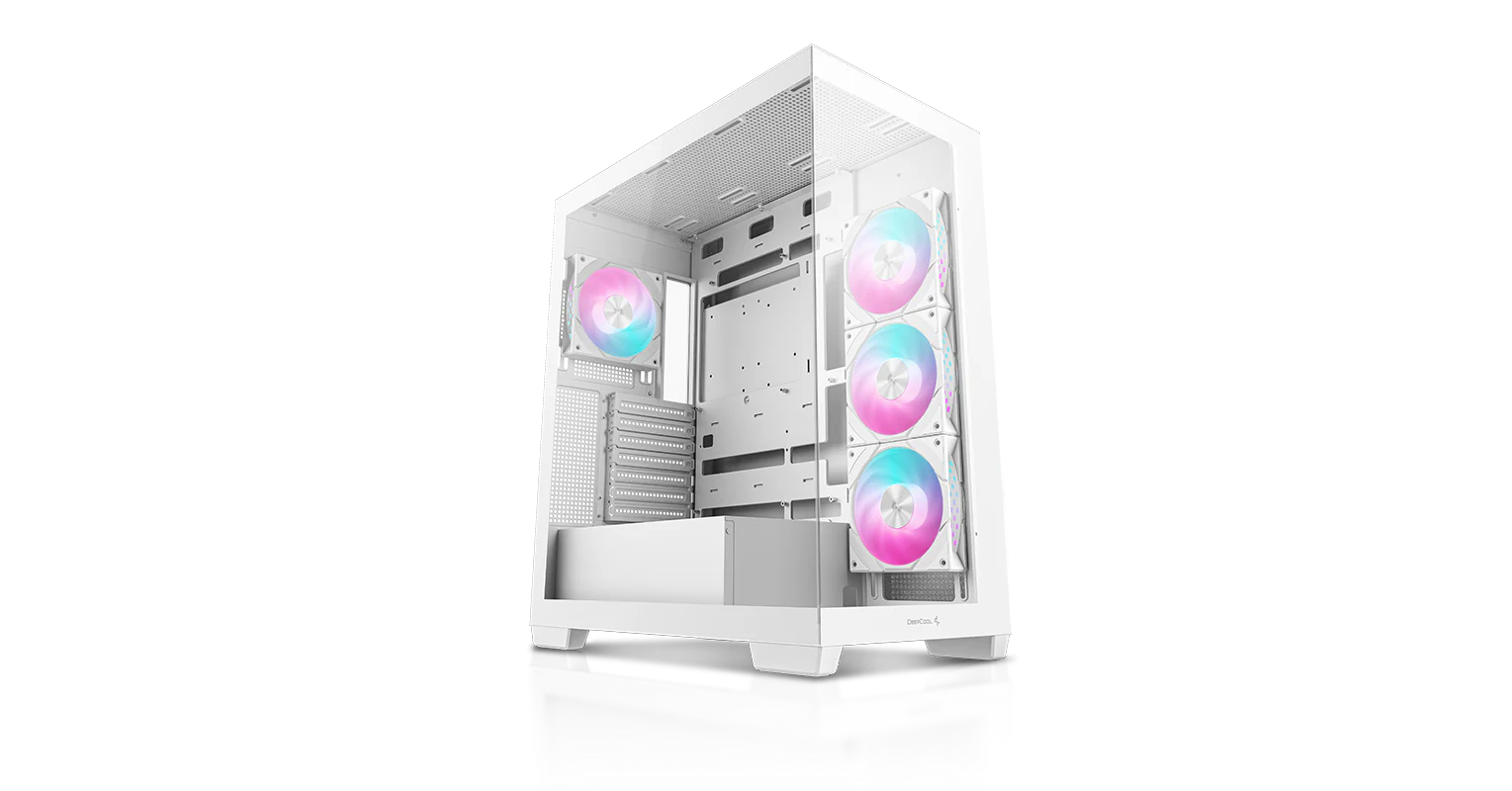

DeepCool CG580 4F WH White Panoramic ATX Mid-Tower Case with 4 ARGB PWM Fans, 360mm Radiator Support, USB 3.0 & Type-C Front I/O
★ 0.0 Rating (0 user feedback)

SKU: R-CG580-WHADA4-G-1

Availability: In Stock

Brand: DeepCool

Category: PC Cases

$199.00


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

The DeepCool CG580 4F WH is a premium panoramic single-chamber ATX mid-tower PC case designed for performance and aesthetics. Featuring pillarless tempered glass panels on the front and side, it offers an expansive 270° view to showcase your build elegantly. The case comes with 4 pre-installed ARGB PWM fans (3 reverse-flow on the side and 1 at the rear) ensuring optimal airflow and vibrant lighting effects.

Supporting ATX, Micro-ATX, and ITX motherboards with 7 expansion slots, this case offers versatile hardware compatibility. Cooling is highly customizable with support for up to two 360mm radiators (side and top) as well as 120/140mm radiators at the rear. Interior space is generous, allowing a CPU cooler height of up to 176mm and GPU length up to 410mm (limited to 262mm if a side 360mm radiator is installed).

Built from ABS, SGCC steel, and tempered glass, the case features a sleek white finish and a single-chamber layout that separates the PSU and storage bays to optimize airflow and ease cable management. Magnetic dust filters on the top, side, and bottom simplify maintenance.

Front I/O includes 2× USB 3.0 ports, 1× Gen 2 Type-C port, and audio/mic jacks for convenient connectivity. Storage is supported with 2× 3.5" and 2× 2.5" drive bays for multiple drives. With a max PSU length of 210mm, the CG580 4F WH balances style, cooling potential, and functionality for modern gaming and workstation builds.

General

GPU Max Length410 mm (262 mm with side 360mm radiator)
PSU Max Length210 mm (ATX PS2)
Front I/O Ports2× USB 3.0,1× USB 3.2 Gen 2 Type-C,1× Audio/Mic Combo
Chassis LayoutSingle chamber with PSU and storage separated
CPU Cooler Max Height176 mm
MaterialsABS + SGCC Steel + Tempered Glass
Fan SupportTop: 3\u00d7120mm\/2\u00d7140mm; Side: 3\u00d7120mm; Rear: 1\u00d7120\/140mm; Bottom & PSU Shroud: Optional
Expansion Slots7
Product Dimensions (L×W×H)437 \u00d7 235 \u00d7 501 mm
internal_storage_bays2\u00d7 3.5\" + 2\u00d7 2.5

Storage

drive_bays2\u00d7 3.5\" + 2\u00d7 2.5
drive_baysInternal: 2\u00d7 3.5\" + 2\u00d7 2.5

Identifiers

Model NumberR-CG580-WHADA4-G-1
Product TypePC Case
Model NumberR-CG580-WHADA4-G-1

Cooling

Dust FiltersMagnetic filters on top,side,bottom
Dust FiltersMagnetic filters on top,side,bottom

Technical

Radiator SupportTop: up to 360mm; Side: up to 360mm; Rear: 120\/140mm
radiator_support_mmTop: up to 360mm; Side: up to 360mm; Rear: 120\/140mm
max_cpu_cooler_height_mm176
max_gpu_length_mm410

Physical

Net Weight8.7 kg
ColorWhite
weight_kg8.7
MaterialABS + SGCC Steel + Tempered Glass
Panel TypeTempered Glass
net_weight_kg8.7
Form FactorATX Mid-Tower

Performance

Pre-installed Fans4× 120mm ARGB PWM (3 side reverse blade,1 rear)
pre_installed_fans4× 120mm ARGB PWM (3 side reverse blade,1 rear)

Compatibility

Motherboard SupportATX,Micro-ATX,ITX

Identification

ModelCG580
ManufacturerDeepCool

Connectivity

connection_interfaceFront I/O: USB 3.0,USB 3.2 Gen 2 Type-C,Audio/Mic

Appearance

Panel MaterialABS + SGCC Steel + Tempered Glass

Aesthetics

RGB LightingARGB
