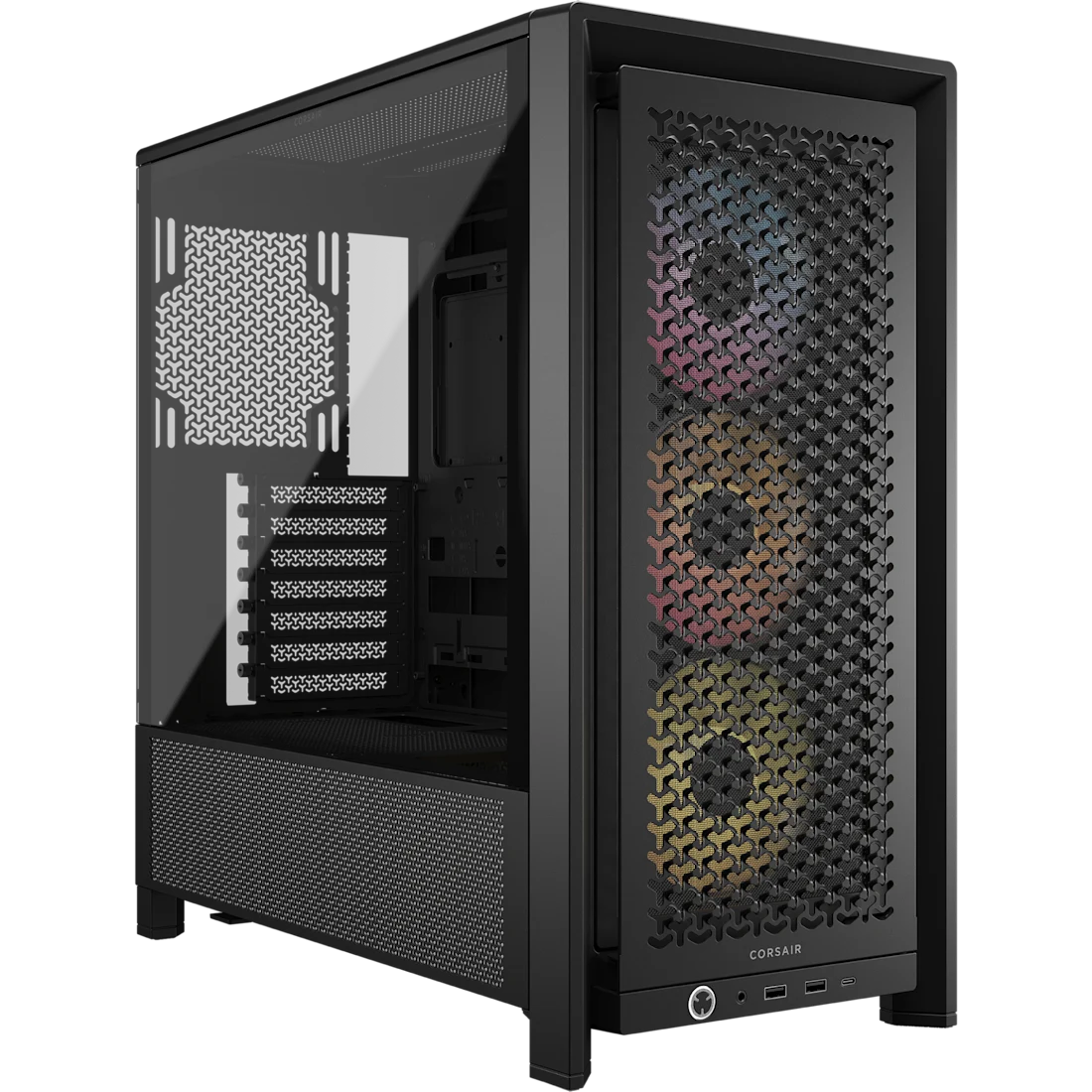

Corsair FRAME 4000D RS ARGB Modular Mid-Tower PC Case - ATX, Tempered Glass, 430mm GPU, 170mm CPU Cooler, Dual 360mm Radiator Support, USB-C 3.2 Gen2
★ 0.0 Rating (0 user feedback)

SKU: CC-9011296-WW

Availability: In Stock

Brand: Corsair

Category: PC Cases

$196.90


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

The Corsair FRAME 4000D RS ARGB is a versatile and fully-modular mid-tower PC case designed for high-performance builds and extensive customization. Featuring the innovative InfiniRail™ multi-point fan mounting system, it enables flexible placement of fans and radiators, supporting up to three 200mm fans at the front and two 140mm fans at the roof for optimum airflow. The case comes pre-installed with three premium RS120 ARGB fans, providing vibrant addressable RGB lighting controllable via a +5V header on compatible motherboards.

Built to accommodate a wide range of motherboard sizes including Mini-ITX, Micro-ATX, ATX, and E-ATX (up to 305mm x 277mm), the FRAME 4000D RS ARGB ensures compatibility with high-end components by supporting GPUs up to 430mm in length, CPU coolers up to 170mm in height, and power supplies up to 220mm in length.

Additional features enhance build quality and aesthetics: a GPU anti-sag stabilization arm prevents graphics card drooping, a tempered glass left panel showcases internal components, and an intelligently engineered 3D Y-pattern steel front panel improves airflow by up to 12% over previous designs. Extensive dust filtration protects your system while maintaining clean airflow.

Connectivity is modern and convenient with front I/O including 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 1 Type-A ports, and combined audio input/output jacks. The case supports vertical GPU mounting (riser card sold separately) and includes 37mm of cable routing space plus a cable shroud for a tidy build.

Whether building a performance gaming rig, workstation, or enthusiast PC, the Corsair FRAME 4000D RS ARGB offers flexibility, style, and efficient cooling capabilities backed by a 2-year warranty.

General

Fan SupportUp to 10x 120mm or mixed 200mm\/140mm depending on location
Cable Management Space37mm behind motherboard tray
GPU MountingHorizontal and vertical (riser card sold separately)
Front I/O Ports1x USB 3.2 Gen 2 Type-C,USB 3.2 Gen 1 Type-A,1x Audio In/Out
Pre-installed Fans3x RS120 ARGB
Drive Bays - 2.5"4 internal
Drive Bays - 3.5"2 internal
Max PSU Length220mm
Max CPU Cooler Height170mm
Dimensions (HxLxW)486mm x 490mm x 239mm
Max GPU Length430mm
internal_storage_bays3.5-inch internal,4x 2.5-inch internal

Physical

Weight10.38 kg
Form FactorMid-Tower
MaterialSteel,Tempered Glass,3D Y-Airflow Steel,Plastic
net_weight_kg10.38
Dimensions (mm)490,239,486
Form FactorMid-Tower
Panel TypeTempered Glass (left) and 3D Y-airflow steel (front)
ColorBlack
weight_kg10.38

Support

Warranty2 years

Technical

Radiator SupportUp to dual 360mm (front,top,side),140mm/120mm rear
radiator_support_mmUp to dual 360mm (front,top,side); 140mm/120mm rear
max_cpu_cooler_height_mm170
max_gpu_length_mm430

Compatibility

Motherboard SupportMini-ITX,Micro-ATX,ATX,E-ATX (305mm x 277mm)
Motherboard SupportMini-ITX,Micro-ATX,ATX,E-ATX

Mounting

Mount TypeHorizontal and vertical

Appearance

Panel MaterialTempered Glass

Storage

drive_baysInternal: 2x 3.5,4x 2.5

Aesthetics

RGB LightingARGB

Identifiers

Model NumberFRAME 4000D RS ARGB

Warranty

Warranty (years)2

Performance

pre_installed_fans3x RS120 ARGB
