Brateck Manual Height-Adjustable Display Wall Mount

Designed for large displays ranging from 65" to 86", the Brateck Manual Height-Adjustable Wall Mount offers smooth and effortless height adjustment with fingertip positioning, supporting TVs weighing between 35 to 65 kg (77 to 143 lbs). Engineered from heavy-duty steel and aluminum materials, it ensures durability with a high-quality powder-coated matte black finish that resists scratches.

Key Features:

• Smooth Manual Height Adjustment: Easily adjust TV height up to 400 mm with intuitive finger-touch control.

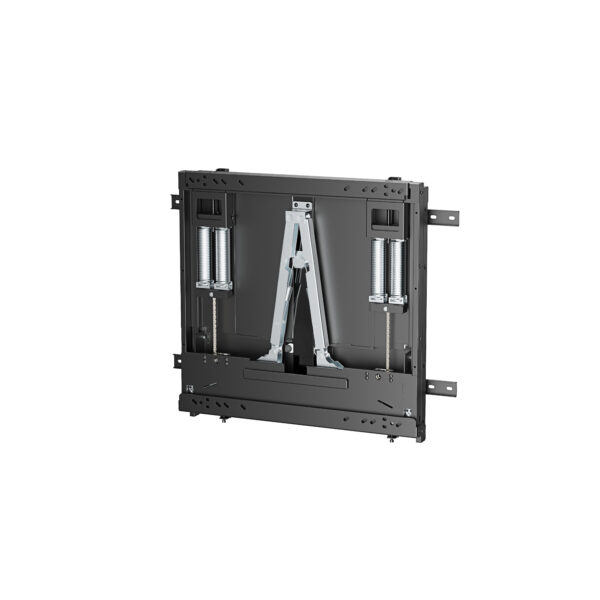

• Weight-Balance Design: Accommodates varying TV weights for stability.
• Wide VESA Compatibility: Supports mounting hole patterns from 200x200 mm up to 800x600 mm, fitting most large TVs.
• Compact Profile: Only 107 mm distance from the wall, allowing the mount to neatly hide behind the screen when not adjusted.
• Heavy-Duty Construction: Made from thick aluminum and steel components (bracket arm 2.5 mm, wall plate 3 mm) for strength and reliability.
• Installation Friendly: Suitable for solid walls or double-stud mounting (406 mm / 450 mm spacing), includes hook-on bubble level and direction indicators for precise setup.
• Detachable Panel: Simplifies mounting and maintenance.

Additional Information:

• Does not support curved TVs.


• Fixed wall plate design ensures strong support.


• No built-in cable management or anti-theft functionality.
